Triplex URD cable,Triplex Aluminium Conductor 600V Secondary Type URD cable

  • Standard:ASTM B-230, B-231 and ICEA S-66-524, UL Standard 854 for type USE Federal Specification JC-30B NEC
  • Capacity:5000km/week
  • Min.Order QTY: 1000 meters
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

Triplex URD cable (Triplex Aluminium Conductor 600V Secondary Type URD cable)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Triplex Aluminium Conductor 600V Secondary Type URD cable

Construction:

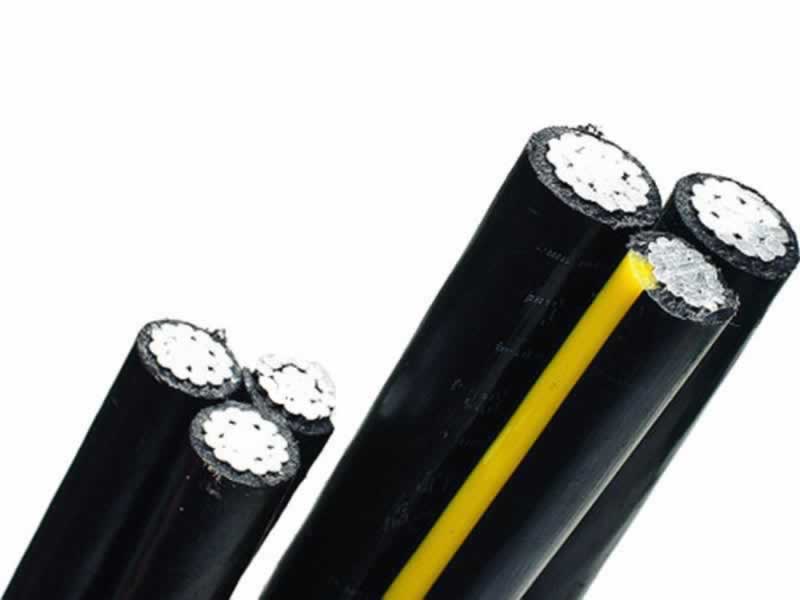

Black phase insulated conductors cabled with neutral. Neutral will be marked with yellow striping or yellow jacket.And the neutral messengers are concentrically stranded AAC, ACSR, or 6201 aluminum alloy. The conductors are manufactured with ridges for phase identification(one conductor with one ridge, one conductor with two ridges ,one conductor is plain).

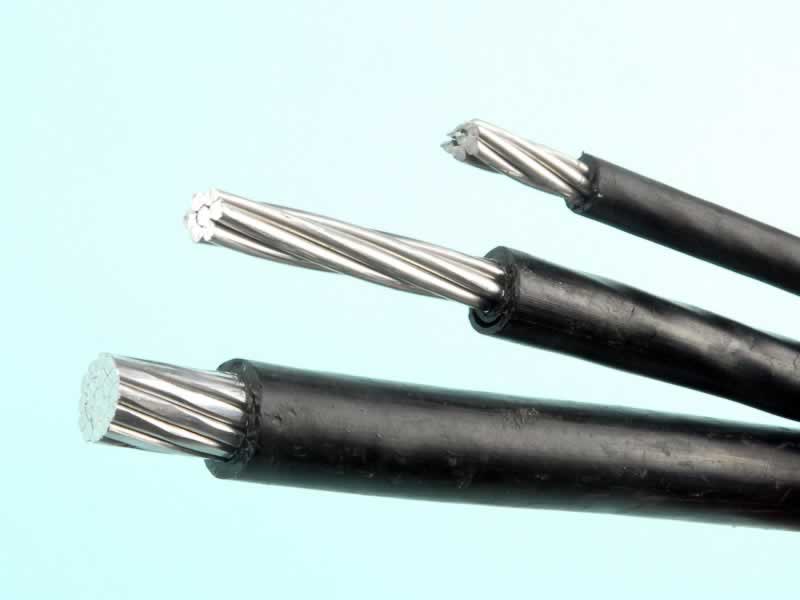

Conductors: Compact stranded AA-8000 series aluminum alloy conductors, AAC, ACSR.

Insulation: Cross-linked polyethylene (XLPE). Neutral conductor identified with yellow striping or full yellow jacket

Application:

Triplex URD cable is rated at 600V for underground secondary distribution and underground service not exceeding 90ºC. It may be directly buried in earth or installed in duct in both wet or dry locations. Material is constructed with 8000 series compact aluminum conductors and is approved for indoor use per the NEC.


600V Single Conductor URD Cable   Code name :6AWG-Princeton; 4AWG-Merce; 2AWG-Clemson; 1AWG-Kenyon; 1/0AWG-Harvard; 2/0AWG-Yele; 3/0AWG-Tufts; 4/0AWG-Beloit; 250AWG-Hofstra; 300AWG-Gonzaga; 350AWG-Rutgers; 500AWG-Emory; 600AWG-Duke; 700AWG-Furman; 750AWG-Sewanee; 1000AWG-Fordham
600V Duplex Conductor URD Cable

 Code name: 8AWG-Bard; 6AWG-Clafin; 4AWG-Delgado; 2AWG-Everett

600V Triplex Conductor URD Cable

 Code name: 6AWG-Eeksine; 4AWG-Vassar; 2AWG-Ramapo; 1/0AWG-Brenau; 1/0AWG-Bergen; 2/0AWG-Converse; 2/0AWG-Hunter; 3/0AWG-Holins; 3/0AWG-rockland; 4/0AWG-Sweetbriar; 4/0AWG-Monmouth; 250AWG-Pratt; 350AWG-Wesleyan; 500AWG-Holyoke; 500AWG-Rider; 750AWG-Fairfield

600V Quadruplex Conductor URD Cable

 Code name: 4AWG-Tulsa; 2AWG-Dyke; 2AWG-Wittenberg; 1/0AWG-Notre Dame; 1/0AWG-Purdue; 2/0AWG-Syracuse; 2/0AWG-Lafayette; 3/0AWG-Swarthmore; 3/0AWG-Davidson; 4/0AWG-Wake Forest; 4/0AWG-Earlham; 350AWG-Slippery Rock; 500AWG-Wofford; 750AWG-Windham



JYTOP Cable is a professional Triplex URD cable (Triplex Aluminium Conductor 600V Secondary Type URD cable) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!

Triplex URD cable specifications,Triplex URD cable types,Triplex URD cable names,Triplex URD cable table,Triplex URD cable sizes,Triplex URD cable size chart,Triplex URD cable data sheet,Triplex URD cable full form

Triplex Aluminium Conductor 600V Secondary Type URD cable Specification
