Quadruplex urd cable,Quadruplex Aluminium Conductor 600V secondary type URD cable

  • Standard:ASTM B-230, B-231 and ICEA S-66-524, UL Standard 854 for type USE Federal Specification JC-30B NEC
  • Capacity:5000km/week
  • Min.Order QTY: 1000 meters
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

Quadruplex urd cable (Quadruplex Aluminium Conductor 600V secondary type URD cable)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Quadruplex Aluminium Conductor 600V secondary type URD cable

Construction:

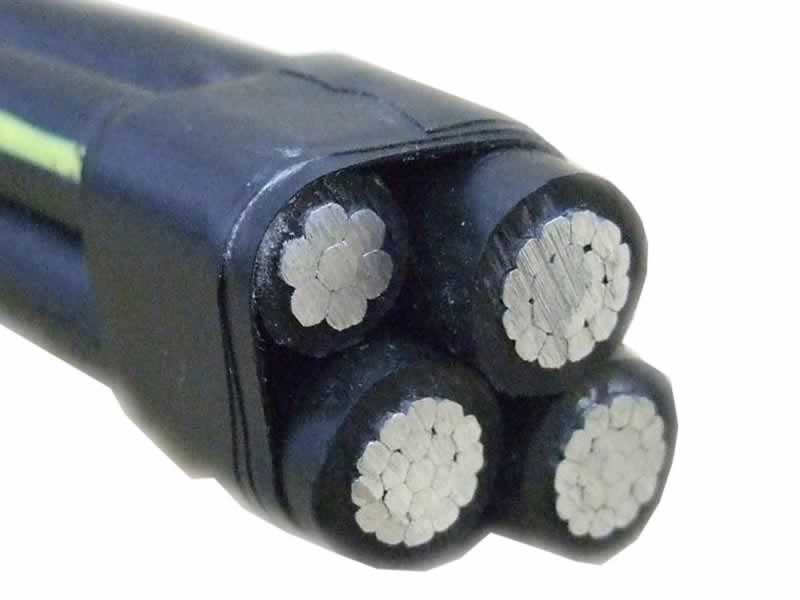

Concentric stranded or compressed 1350-H19 aluminum conductor, crosslinked polyethylene insulation. Insulated conductors surface printed, neutral, triple yellow striped or solid yellow. Black neutrals may be specified if desired.

Application:

quadruplex urd cable is directly buried or installed in ducts for 600 volt secondary distribution.


600V Single Conductor URD Cable   Code name :6AWG-Princeton; 4AWG-Merce; 2AWG-Clemson; 1AWG-Kenyon; 1/0AWG-Harvard; 2/0AWG-Yele; 3/0AWG-Tufts; 4/0AWG-Beloit; 250AWG-Hofstra; 300AWG-Gonzaga; 350AWG-Rutgers; 500AWG-Emory; 600AWG-Duke; 700AWG-Furman; 750AWG-Sewanee; 1000AWG-Fordham
600V Duplex Conductor URD Cable

 Code name: 8AWG-Bard; 6AWG-Clafin; 4AWG-Delgado; 2AWG-Everett

600V Triplex Conductor URD Cable

 Code name: 6AWG-Eeksine; 4AWG-Vassar; 2AWG-Ramapo; 1/0AWG-Brenau; 1/0AWG-Bergen; 2/0AWG-Converse; 2/0AWG-Hunter; 3/0AWG-Holins; 3/0AWG-rockland; 4/0AWG-Sweetbriar; 4/0AWG-Monmouth; 250AWG-Pratt; 350AWG-Wesleyan; 500AWG-Holyoke; 500AWG-Rider; 750AWG-Fairfield

600V Quadruplex Conductor URD Cable

 Code name: 4AWG-Tulsa; 2AWG-Dyke; 2AWG-Wittenberg; 1/0AWG-Notre Dame; 1/0AWG-Purdue; 2/0AWG-Syracuse; 2/0AWG-Lafayette; 3/0AWG-Swarthmore; 3/0AWG-Davidson; 4/0AWG-Wake Forest; 4/0AWG-Earlham; 350AWG-Slippery Rock; 500AWG-Wofford; 750AWG-Windham



JYTOP Cable is a professional Quadruplex urd cable (Quadruplex Aluminium Conductor 600V secondary type URD cable) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!

Quadruplex urd cable specifications,Quadruplex urd cable types,Quadruplex urd cable names,Quadruplex urd cable table,Quadruplex urd cable sizes,Quadruplex urd cable size chart,Quadruplex urd cable data sheet,Quadruplex urd cable full form

Quadruplex Aluminium Conductor 600V secondary type URD cable Specification
