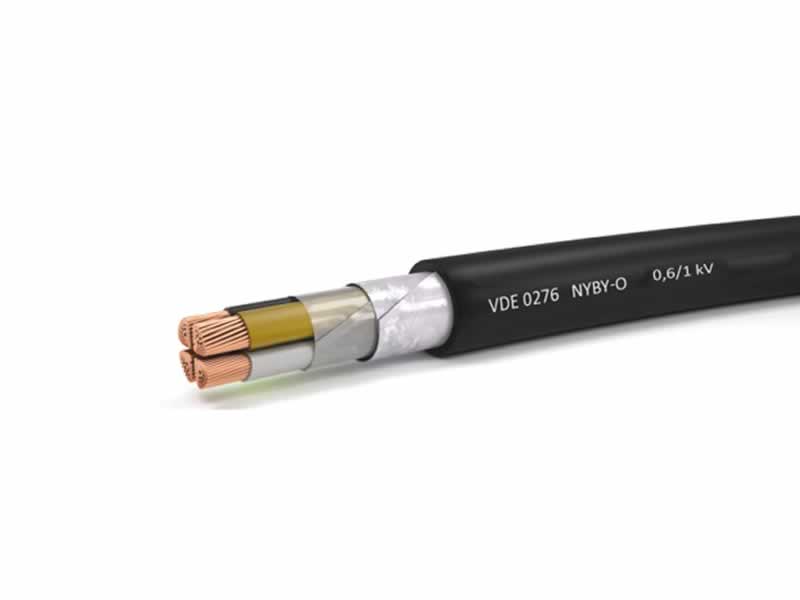

NYBY,NYBY-J,NYBY-o,0.6/1kv Copper PVC Insulated PVC Sheathed Steel Galvanized Tapes Armoured Power and Control Cable

  • Standard: HRN HD 603 S1,IEC 60502-1, DIN VDE 0276 part 603
  • Structure:Cu(Al)/PVC/STA/PVC
  • Min.Order QTY: 1km
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

NYBY,NYBY-J,NYBY-o (0.6/1kv Copper PVC Insulated PVC Sheathed Steel Galvanized Tapes Armoured Power and Control Cable)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Kabel NYBY Application:

Distribution power cable for static application, mostly in ground, but also in water, within facilities, in cable canals, in concrete. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and other electric plants. Applied in conditions requiring protection against heavier mechanical damages, but where cables are not exposed to heavier tensile strain.

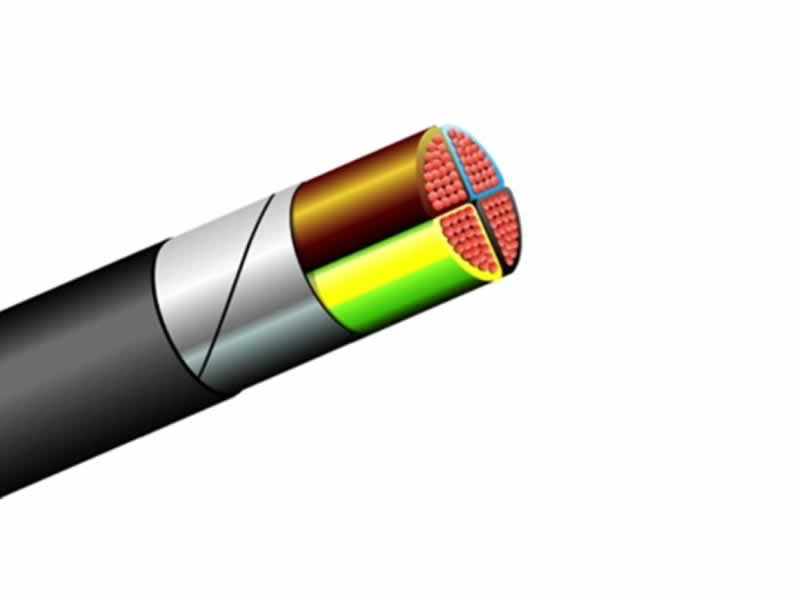

NYBY Cable Construction:

Conductor: Cu, class 1 or 2 acc. to HRN HD 383 / IEC 60228 / DIN VDE 0295
class 1: solid, round (RE)
class 2: multi wire stranded, round (RM) or sector (SM), multi wire exceeding 50 mm² are compacted
Insulation: PVC compound, concentrically stranded cores, colour marked acc. to HRN HD 308 S2 / VDE 0293-308, with or without protective yellow-green conductor
Filler: spouted elastomer or plastomer compound or wrapped thermoplastic tapes
Armour: Wrapping of two galvanized steel tapes
Sheath: PVC compound
sheath colour: black

NYBY-J / NYBY-O Technical Sheet :

Number and cross-sectional area of conductor Approximate overall diameter Approximate net weight
of cables
Maximum conductor resistance  at temperature 20°C
n x mm2 mm kg/km Ω/km
2×1,5RE 13,7 297 12,1
2×2,5RE 14,5 342 7,41
2x4RE 16,2 438 4,61
2x6RE 17,2 513 3,08
2x10RE 18,8 651 1,83
2x10RM 19,4 683 1,83
2x16RE 20,6 833 1,15
2x16RM 21,4 881 1,15
2x25RM 25,4 1275 0,727
2x35RM 27,5 1567 0,524

3×1,5RE 14,2 325 12,1
3×2,5RE 15,0 378 7,41
3x4RE 16,8 491 4,61
3x6RE 17,9 584 3,08
3x10RE 19,6 758 1,83
3x10RM 20,3 793 1,83
3x16RE 21,5 990 1,15
3x16RM 22,4 1043 1,15
3x25RM 26,7 1524 0,727
3x35SM 26,7 1644 0,524
3x50SM 29,7 2112 0,387
3x70SM 33,4 2842 0,268
3x95SM 38,8 4110 0,193
3x120SM 41,6 4939 0,153
3x150SM 46,2 6019 0,124
3x185SM 50,3 7302 0,0991
3x240SM 56,3 9339 0,0754


Number and cross-sectional area of conductor Approximate overall diameter Approximate net weight
of cables
Maximum conductor resistance  at temperature 20°C
n x mm2 mm kg/km Ω/km
4×1,5RE 14,9 362 12,1
4×2,5RE 15,9 430 7,41
4x4RE 17,9 565 4,61
4x6RE 19,1 679 3,08
4x10RE 21,0 895 1,83
4x10RM 21,8 937 1,83
4x16RE 23,2 1188 1,15
4x16RM 24,2 1250 1,15
4x25RM 28,9 1837 0,727
4x35SM 29,7 2098 0,524
4x50SM 33,6 2756 0,387
4x70SM 38,6 4017 0,268
4x95SM 43,7 5306 0,193
4x120SM 47,5 6437 0,153
4x150SM 51,7 7756 0,124
4x185SM 57,0 9531 0,0991
4x240SM 63,4 12128 0,0754

3x35SM/16RE 26,7 1804 0,524/1,15
3x50SM/25RM 32,2 2455 0,387/0,727
3x70SM/35SM 37,2 3334 0,268/0,524
3x95SM/50SM 42,2 4772 0,193/0,387
3x120SM/70SM 45,1 5806 0,153/0,268
3x150SM/70SM 49,7 6865 0,124/0,268
3x185SM/95SM 54,1 8442 0,0991/0,193
3x240SM/120SM 60,8 10759 0,0754/0,153

Number and cross-sectional area of conductor Approximate overall diameter Approximate net weight
of cables
Maximum conductor resistance  at temperature 20°C
n x mm2 mm kg/km Ω/km
5×1,5RE 15,8 410 12,1
5×2,5RE 16,8 489 7,41
5x4RE 19,1 654 4,61
5x6RE 20,5 796 3,08
5x10RE 22,6 1060 1,83
5x10RM 23,4 1108 1,83
5x16RE 25,0 1420 1,15
5x16RM 26,2 1497 1,15
5x25RM 31,4 2213 0,727
5x35RM 34,6 2829 0,524
5x50RM 41,2 4147 0,387
5x70RM 45,2 5391 0,268

7×1,5RE 16,7 470 12,1
7×2,5RE 17,8 570 7,41

10×1,5RE 19,6 618 12,1
10×2,5RE 21,2 763 7,41

12×1,5RE 20,1 668 12,1
12×2,5RE 21,7 831 7,41


14×1,5RE 20,9 729 12,1
14×2,5RE 22,5 912 7,41

16×1,5RE 21,7 797 12,1
16×2,5RE 23,5 1005 7,41

19×1,5RE 22,6 877 12,1
19×2,5RE 24,5 1117 7,41

24×1,5RE 25,6 1069 12,1
24×2,5RE 27,8 1368 7,41

30×1,5RE 26,8 1222 12,1
30×2,5RE 29,4 1597 7,41

37×1,5RE 28,5 1412 12,1
37×2,5RE 31,4 1864 7,41

48×1,5RE 32,1 1752 12,1
48×2,5RE 35,8 2365 7,41

61×1,5RE 35,0 2129 12,1
