NA2XY,0.6/1kv Four Core Aluminium XLPE Insulated PVC Jacket Underground Power Cables

  • Standard:DIN VDE 0276 part 603
  • Structure:Al/XLPE/STA/PVC
  • Min.Order QTY: 1km
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

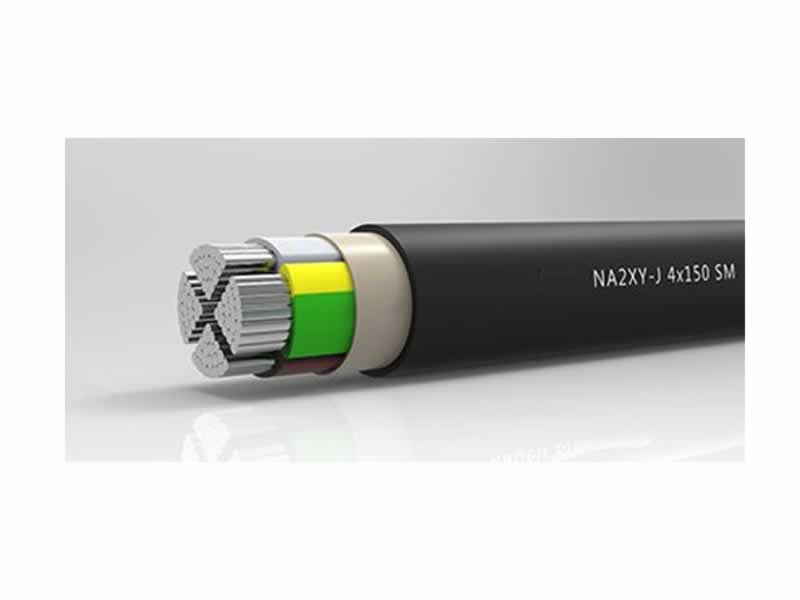

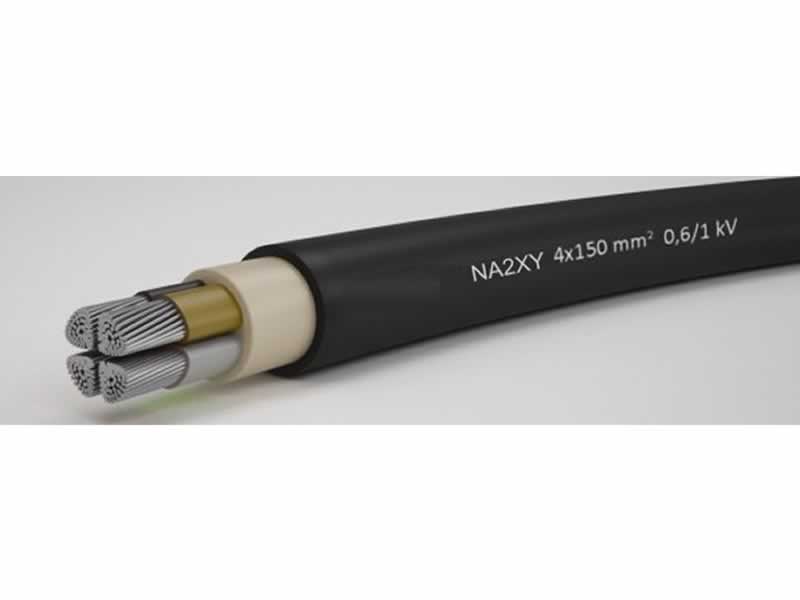

NA2XY (0.6/1kv Four Core Aluminium XLPE Insulated PVC Jacket Underground Power Cables)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Application:
Kabel NA2XY is widely used In ground, outdoors. in concrete, indoors and in cable ducts where no mechanical damage is to be expected

NA2XY Cable Construction:
Conductor of solid aluminium wires – insulation of cross-linked polyethylene (XLPE) -extruded or lapped inner covering – PVC sheath.


Conductor material Aluminum
Insulation XLPE (chemical)
Outer sheath PVC
Rated Voltage Uo/U (Um) 0.6/1 kV
Frequence 50Hz
Max. system voltage, 1-phase grounded 0.7kV
Max. system voltage: 1 phase both phases grounded (Um) 1.4kV
Max. system voltage 3 phases (Um) 1.2kV
Max. conductor temperature in service 90°C
Minimum installation temperature -5°C
Short-circuit max. conductor temperature 250°C

NA2XY Technical Parameter:

No. of cores
x nom. cross
section
max.
conductor
resistance
current
rating
in the ground
current
rating
in the air 1)
outer
diameter
AL-
number
total
weight

mm²

Ohm/km

A

A
appr.
mm
appr.
kg/km
appr.
kg/km
1 × 25 RE 1.200 177 136 11,5 73 191
1 × 35 RE 0.868 212 166 12,5 102 231
1 × 50 RM 0.641 252 205 14,5 145 292
1 × 70 RM 0.443 310 260 16,3 203 390
1 × 95 RM 0.320 372 321 18,1 276 480
1 × 120 RM 0.253 425 376 19,8 348 556
1 × 150 RM 0.206 476 431 21,5 435 675
1 × 185 RM 0.164 541 501 23,8 537 830
1 × 240 RM 0.125 631 600 26,3 696 1.059
1 × 300 RM 0.100 716 696 29,0 870 1.260
1 × 400 RM 0.078 825 821 31,8 1.160 1.560
1 × 500 RM 0.061 952 971 36,5 1.450 1.949
1 x 630 RM* 0.047 1.102 1.151 41,9 1.827 2.386

* conductor is not compressed
→ Other cross-sections on request.
1) Basic rated current acc. to DIN VDE 276-603 (HD 603)
Technical values can change. No responsibility is therefore taken for correctness.

0.6/1kv Four Core Aluminium XLPE Insulated PVC Jacket Underground Power Cables,NA2XY specifications(data sheet,table,full form)
