N2XBY,NA2XBY,0.6/1Kv Copper XLPE Insulation Double Galvanized Steel Tape Armor PVC Sheath Power Cable.

  • Standard:IEC 60228
  • Structure:Cu(Al)/XLPE/PVC/STA/PVC
  • Min.Order QTY: 1km
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

N2XBY,NA2XBY (0.6/1Kv Copper XLPE Insulation Double Galvanized Steel Tape Armor PVC Sheath Power Cable.)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

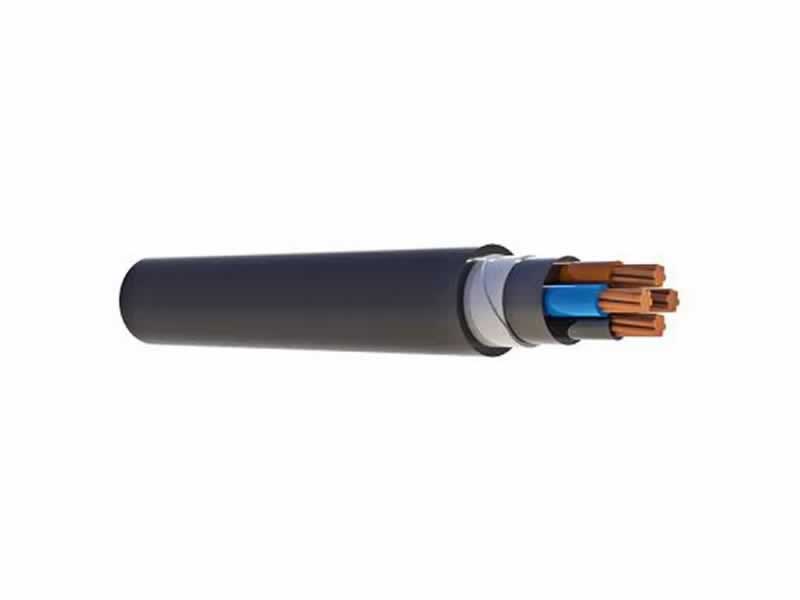

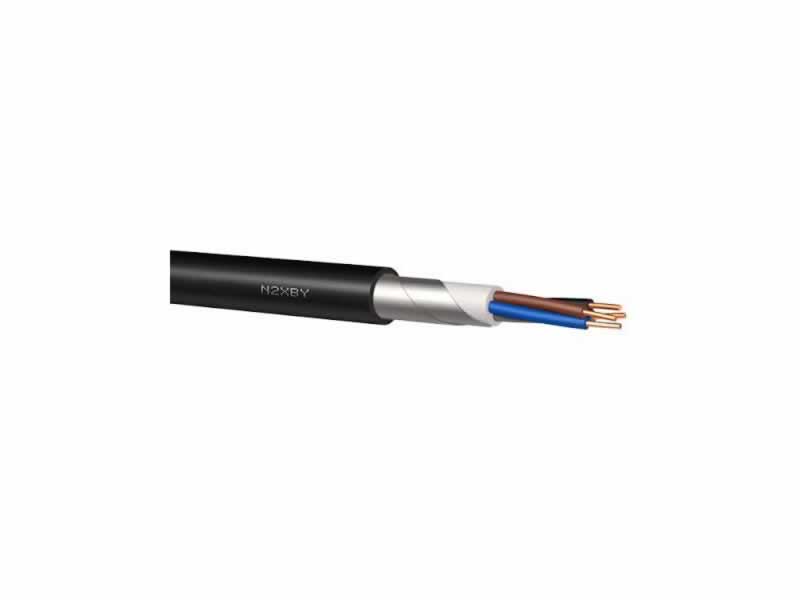

Construction :

1)Copper Conductor
2) XLPE Insulation
3) PVC Filler
4) Galvantised Steel Tape Armour.
5) PVC Sheath

Applications :
N2XBY cable is used for installations as underground outdoor and indoor in ducts and where mechanical protection is required or for higher tensile stresses during installation and operation suitable for comparatively higher operation temparature with XLPE insulation.

NA2XBY cable is used for installation indoors, cable channels and in ground, for industry installations, switchgear,and power station, if there is a risk that low mechanical damage may occur.

Technical Data : Max operating temperature 90 C.

Rated Voltage: 0.6/1KV

N2XBY  Power Cable Technical Parameter:

Conductor

Inductance

Current – Carrying Capacity at 30° C *

Short circuit current at 1 sec

Nom. Cross Section Area

DC Resistance at 20°C

AC Resistance at 90°C

in air

in ground

(mm²)

Max. (Ω/km)

Max. (Ω/km)

(mH/km)

Max. (A)

Max. (A)

Max. (kA)

1.5

12.1

15.429

0.315

27

32

0.21

2.5

7.41

9.449

0.293

36

42

0.36

4

4.61

5.878

0.275

48

55

0.57

6

3.08

3.927

0.263

60

68

0.86

10

1.83

2.334

0.248

83

91

1.43

16

1.15

1.467

0.238

110

118

2.29

25

0.727

0.927

0.240

148

152

3.58

35

0.524

0.669

0.233

183

183

5.01

50

0.387

0.494

0.232

214

210

7.15

70

0.268

0.343

0.229

269

256

10.01

95

0.193

0.247

0.224

334

309

13.59

120

0.153

0.197

0.223

386

350

17.16

150

0.124

0.160

0.224

449

395

21.45

185

0.0991

0.129

0.225

512

444

26.46

240

0.0754

0.099

0.223

604

513

34.32

300

0.0601

0.081

0.221

692

577

42.90

NA2XBY Cable Specification Date Sheet :

Conductor

Overall Diameter

Cable Weight

Inductance

Current – Carrying Capacity at 30° C *

Short circuit current at 1 sec

Nom. Cross Section Area

DC Resistance at 20°C

AC Resistance at 90°C

approx.

approx.

in air

in ground

(mm²)

Max. (Ω/km)

Max. (Ω/km)

mm

kg/km

(mH/km)

Max. (A)

Max. (A)

Max. (kA)

10

3.08

3.949

19.7

519

0.248

64

70

0.94

16

1.91

2.449

23.0

685

0.236

86

91

1.50

25

1.20

1.539

25.5

880

0.242

114

118

2.35

35

0.868

1.113

28.5

1,097

0.234

141

142

3.29

50

0.641

0.822

32.5

1,196

0.232

166

163

4.70

70

0.443

0.568

37.0

1,586

0.229

209

199

6.58

95

0.320

0.411

42.5

2,399

0.224

259

239

8.93

120

0.253

0.325

47.5

2,919

0.223

300

272

11.28

150

0.206

0.265

53.5

3,482

0.225

349

307

14.10

185

0.164

0.211

57.5

4,125

0.225

399

346

17.39

240

0.125

0.162

64.0

5,122

0.223

473

401

22.56

300

0.100

0.130

69.5

6,088

0.222

543

453

28.20

0.6/1Kv Copper XLPE Insulation Double Galvanized Steel Tape Armor PVC Sheath Power Cable.,N2XBY,NA2XBY specifications(data sheet,table,full form)

JYTOP Cable is a professional N2XBY,NA2XBY (0.6/1Kv Copper XLPE Insulation Double Galvanized Steel Tape Armor PVC Sheath Power Cable.) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!
