MV XLPE Armoured Power Cable (Medium Voltage XLPE Insulated Armoured Power Cable)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

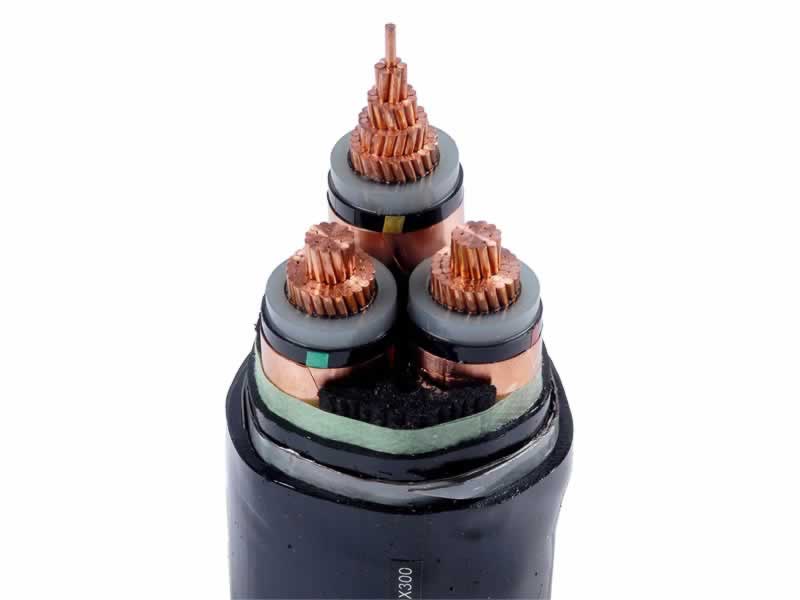

Medium Voltage,Three Cores, Al or Cu/XLPE/CTS/STA/PVC Armoured Power Cable


Application:
Medium Voltage XLPE Insulated armoured power cable is used to transmit and distribute power in power transmission and distribution system of 3.6kv~35kV . It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

Property:
1.The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2.In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3.the environmental temperature of operating in air should be no more than 40 degrees, and 25 degrees underground.
4.Excellent electrical performance, resistance to chemical corrosion.

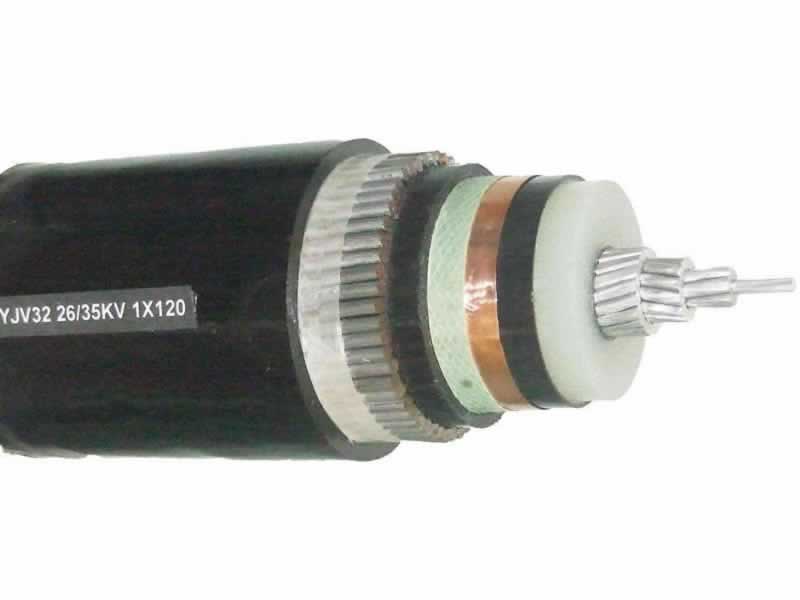

Construction:

3.6/6(7.2)kV, 3.8/6.6(7.2)kV,
6/10(12)kV,6.35/11(12)kV,
8.7/10(15)kV,8.7/15(17.5)kV,
12/20(22)kV,12.7/22(24)kV,
12.7/22(24)kV,18/30(36)kV, 19/33(36)kV
XLPE Insulated Power Cable
Conductor Insulation Armor Outer Sheath
Aluminum Copper XLPE SW ST DST AW PVC PE
Cu/XLPE/PVC   P P P
Cu/ XLPE /PE   P P   P
Al/ XLPE /PVC P   P P
Al/ XLPE /PE P   P   P
Cu/ XLPE /STA/PVC   P P P P
Cu/ XLPE /STA/PE   P P P   P
Al/ XLPE /STA/PVC P   P P P
Al/ XLPE /STA/PE P   P P   P
Cu/ XLPE /DSTA/PVC   P P P P
Cu/ XLPE /DSTA/PE   P P P   P
Al/ XLPE /DSTA/PVC P   P P P
Al/ XLPE /DSTA/PE P   P P   P
Cu/ XLPE /SWA/PVC   P P P P
Cu/ XLPE /SWA/PE   P P P   P
Al/PVC/SWA/PVC P   P P P
Al/PVC/SWA/PE P   P P   P
Cu/PVC/AWA/PVC   P P P P
Cu/PVC/AWA/PE   P P P   P
Al/PVC/AWA/PVC P   P P P
Al/PVC/AWA/PE P   P P   P
Armor material :   SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire

It shows us the most common sizes of conductor, but other sizes to any recognized standards or customer specification can also be supplied as per customer's requirements.

Voltage rating for Medium Voltage XLPE Power Cable  No. x Nominal Cross Section
of Conductor      No. x  mm2
1 core 3 core


3.6/6(7.2)kV
3.6/6.6(7.2) kV, 6/10(12)kV
8.7/10(12)kV, 8.7/15(17.5)kV
12/20(24)kV
18/30(36)kV
21/35(40.5)kV
26/35(40.5)kV
1x 25 mm2 3x 25 mm2
1×35 mm2 3x 35 mm2
1×50 mm2 3x 50 mm2
1×70 mm2 3x 70 mm2
1×95 mm2 3x 95 mm2
1×120 mm2 3x 120 mm2
1×150 mm2 3x 150 mm2
1×185 mm2 3x 185 mm2
1×240 mm2 3x 240 mm2
1×300 mm2 3x 300 mm2
1×400 mm2 3x 400 mm2
1×500 mm2 3x 500 mm2
1×630 mm2


JYTOP Cable is a professional MV XLPE Armoured Power Cable (Medium Voltage XLPE Insulated Armoured Power Cable) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!

Medium Voltage XLPE Insulated Armoured Power Cable,MV XLPE Armoured Power Cable specifications(data sheet,table,full form)

Medium Voltage XLPE Insulated Armoured Power Cable
