MV TR-XLPE URD Cable,Medium Voltage TR-XLPE Insulated URD Cable

  • Standard:ICEA S-94-649,AEIC CS-8,Made in accordance to RUS
  • Structure::Cu(Al)/XLPE-TR/PE
  • Min.Order QTY: 300m/reels
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

MV TR-XLPE URD Cable (Medium Voltage TR-XLPE Insulated URD Cable)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Medium Voltage Power Cable – URD-Primary Underground Distribution Cable

Property:
1). 15KV,25KV, 35kv TR-XLPE Insulation
2). 100% Insulation
3). Concentric Neutral
4). Maximum Conductor Temperature: Normal continuous 90°C, Overload 130°C, Short Circuit 250°C

Application:
Medium-Voltage TR-XLPE Power Cable is suitable for Primary underground Distribution System; buried directly or installed in underground ducts or conduits or exposed to sunlight for above ground application. To be used a 15,000 volts or less. Rated for continuous operation at 90℃ conductor temperature.

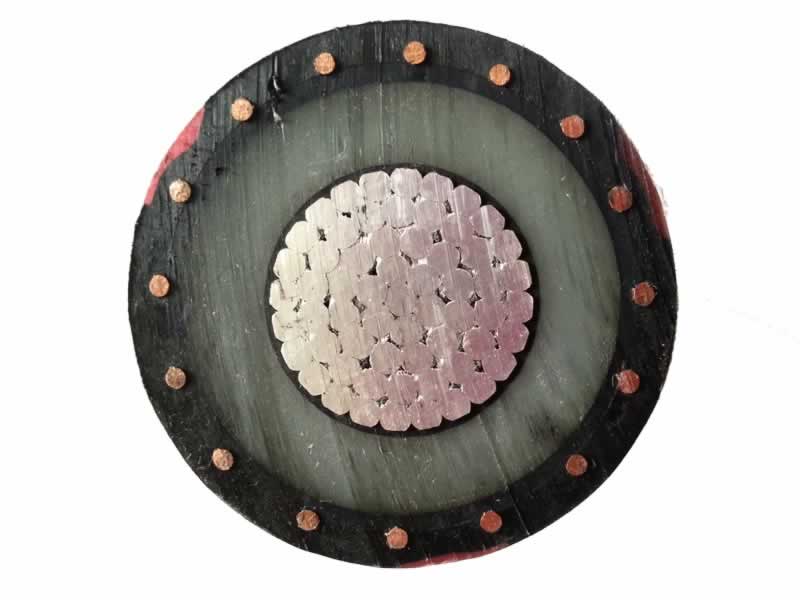

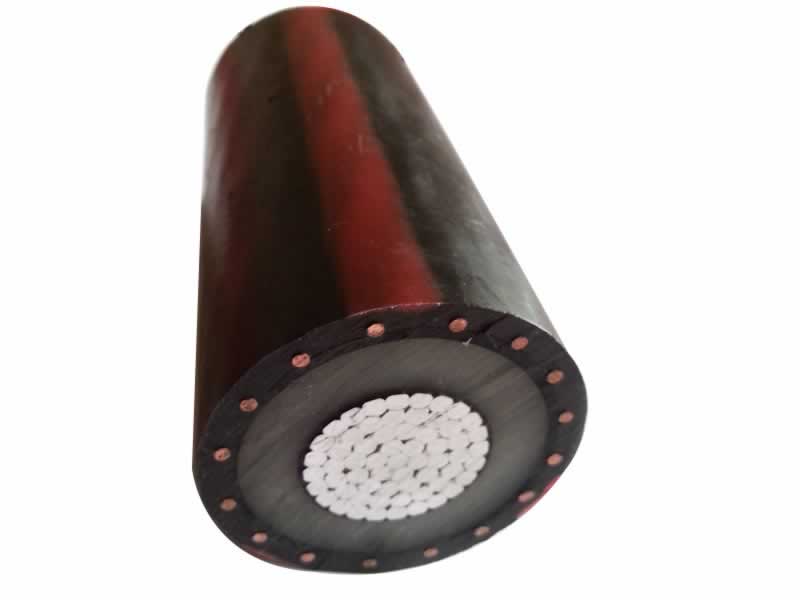

Construction:

Conductor  Bare aluminum or copper stranded class B conductor (compressed stranding)
Strand Shield  Extruded semi-conducting strand shield
Insulation  Cross-linked polyethylene (XLPE) or tree-retardant cross-linked polyethylene (XLPE-TR) insulation
Insulation Shield  Extruded semi-conducting insulation shield
Neutral Wires  Coated or uncoated copper concentric neutral wires
Embedded Jacket  Non-conducting linear low density PE (LLDPE) encapsulating jacket with extruded red stripes. Optional semi-conducting PE  jacket

Six main type of TR-XLPE power cables for Medium-Voltage Primary Distribution:

15kV TR-XLPE URD Cable  100% Insulation Level
15kV TR-XLPE URD Cable  133% Insulation Level
25kV TR-XLPE URD Cable  100% Insulation Level
25kV TR-XLPE URD Cable  133% Insulation Level
35kV TR-XLPE URD Cable  100% Insulation Level
35kV TR-XLPE URD Cable  133% Insulation Level

JYTOP Cable is a professional MV TR-XLPE URD Cable (Medium Voltage TR-XLPE Insulated URD Cable) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!

Medium Voltage TR-XLPE Insulated URD Cable,MV TR-XLPE URD Cable specifications(data sheet,table,full form)

Medium Voltage TR-XLPE Insulated URD Cable
Last modified 06/2016
