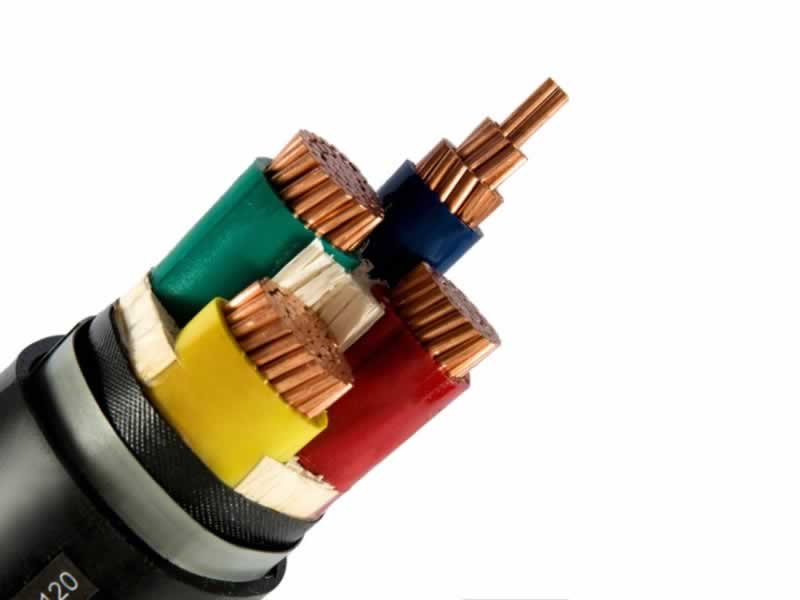

LV XLPE Power Cable,Low Voltage XLPE Insulated PVC Sheathed Power Cable

  • Standard:IEC60502-2 VDE 0276-620 AS/NZS1429.1 ICEA S93-639 ICEA S94-649
  • Structure::Cu(Al)/XLPE/PVC
  • Min.Order QTY: 300M/reels
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

LV XLPE Power Cable (Low Voltage XLPE Insulated PVC Sheathed Power Cable)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Low Voltage XLPE Insulated PVC Sheathed Power Cable.
All type of Low Voltage XLPE Insulated PVC Sheathed Power Cable.

1). 0.6/1kV, Single Core, Cu or Al/XLPE/PVC Power Cable;
0.6/1kV, Single Core, Cu or Al/XLPE/PVC/AWA/PVC Power Cable;

(2). 0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(3). 0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(4). 0.6/ 1kV ,3+1 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3 +1Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3+1 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(5). 0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(6). 0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(7). 0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(8). 0.6/ 1kV ,3+2 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3C+2 Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3C+2 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Application:
Low Voltage XLPE Insulated power cable is used to transmit and distribute power in power transmission and distribution system of 1kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

Property:
1.The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2.In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3.The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
4.Excellent electrical performance, resistance to chemical corrosion.
5.They can stand advisable traction when laid.They can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable.

Voltage rating for  XLPE Power Cable                   No. x Nominal Cross Section of Conductor             No. x  mm2
    1 core     2 core     3 core    3+1 core 4core 3+2 core 4+1 core 5 core
0.6/1 kV

1×4 mm2 2×4 mm2 3×4 mm2 3×4 mm2 + 1×2.5mm2 4×4 mm2 3×4 mm2 + 2×2.5mm2 4×4 mm2 + 1×2.5mm2 5×2.5 mm2
1×6 mm2 2×6 mm2 3×6 mm2 3×6 mm2 + 1×4 mm2 4×6 mm2 3×6 mm2 + 2×4 mm2 4×6 mm2 + 1×4 mm2 5×4 mm2
1×10 mm2 2×10 mm2 3×10 mm2 3×10 mm2 + 1×6 mm2 4×10 mm2 3×10 mm2 + 2×6 mm2 4×10 mm2 + 1×6 mm2 5×6 mm2
1×16 mm2 2×16 mm2 3x16mm2 3×16 mm2 + 1×10 mm2 4×16 mm2 3×16 mm2 + 2×10 mm2 4×16 mm2 + 1×10 mm2 5×10 mm2
1x 25 mm2 2x 25 mm2 3x 25 mm2 3×25 mm2 + 1x16mm2 4×25 mm2 3×25 mm2 + 2x16mm2 4×25 mm2 + 1x16mm2 5×16 mm2
1×35 mm2 2×35 mm2 3x 35 mm2 3×35 mm2 + 1x16mm2 4×35 mm2 3×35 mm2 + 2x16mm2 4×35 mm2 + 1x16mm2 5×25 mm2
1×50 mm2 2×50 mm2 3x 50 mm2 3×50 mm2 + 1x25mm2 4×50 mm2 3×50 mm2 + 2x25mm2 4×50 mm2 + 1x25mm2 5×35 mm2
1×70 mm2 2×70 mm2 3x 70 mm2 3×70 mm2 + 1x35mm2 4×70 mm2 3×70 mm2 + 2x35mm2 4×70 mm2 + 1x35mm2 5×50 mm2
1×95 mm2 2×95 mm2 3x 95 mm2 3×95 mm2 + 1x50mm2 4×95 mm2 3×95 mm2 + 2x50mm2 4×95 mm2 + 1x50mm2 5×70 mm2
1×120 mm2 2×120 mm2 3x 120 mm2 3x120mm2 + 1x70mm2 4×120 mm2 3x120mm2 + 2x70mm2 4x120mm2 + 1x70mm2 5×95 mm2
1×150 mm2 2×150 mm2 3x 150 mm2 3x150mm2 + 1x70mm2 4×150 mm2 3x150mm2 + 2x70mm2 4x150mm2 + 1x70mm2
1×185 mm2 2×185 mm2 3x 185 mm2 3x185mm2 + 1x95mm2 4×185 mm2 3x185mm2 + 2x95mm2 4x185mm2 + 1x95mm2
1×240 mm2   3x 240 mm2 3x240mm2 + 1x120mm2 4×240 mm2 3x240mm2 + 2x120mm2 4x240mm2 + 1x120mm2
1×300 mm2   3x 300 mm2 3x300mm2 + 1x150mm2 4×300 mm2 3x300mm2 + 2x150mm2 4x300mm2 + 1x150mm2
1×400 mm2
1×500 mm2

JYTOP Cable is a professional LV XLPE Power Cable (Low Voltage XLPE Insulated PVC Sheathed Power Cable) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!

Low Voltage XLPE Insulated PVC Sheathed Power Cable,LV XLPE Power Cable specifications(data sheet,table,full form)

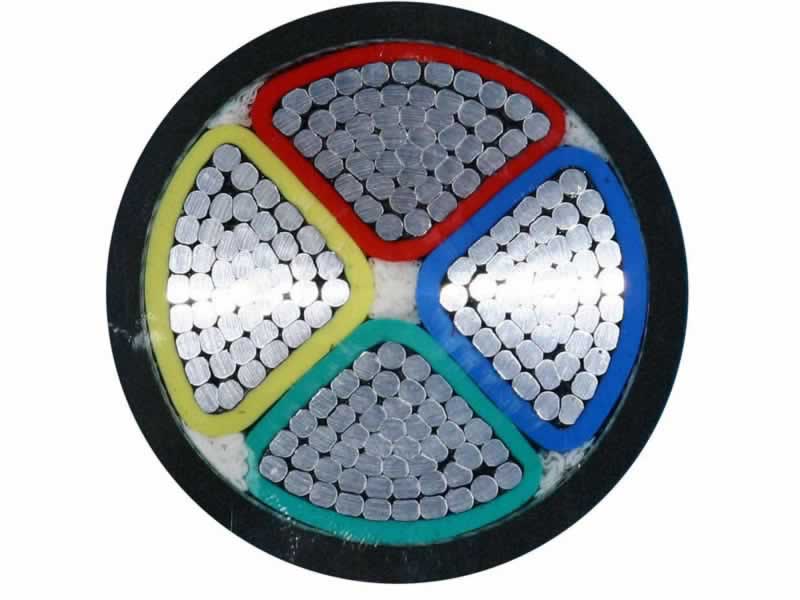

0.6-1kV XLPE Insulated Power Cable specification
