LV PVC Power Cable,Low Voltage PVC Insulated PVC Sheathed Power Cable

  • Standard:IEC60502-1 VDE 0276-603 ICEA S-95-658 AS/NZS 5000.1
  • Structure::Cu(Al)/PVC/PVC
  • Min.Order QTY: 300m/reels
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

LV PVC Power Cable (Low Voltage PVC Insulated PVC Sheathed Power Cable)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Low Voltage PVC Insulated PVC Sheathed Power Cable.

Application:
PVC Insulated and Sheathed Power Cable are suitable to be laid for distribution line with A.C.50HZ and rated voltage up to 1kV. With the characteristics of stable capability, advanced technology, broad material resources, low price, good flexible and easy to lay and maintain.

Property:
1.The long-term permissible operation temperature of the conductor shall not be higher than 70℃.
2. Conductor maximum short circuit((less than 5 second) temperature shall not be higher than 160℃.
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0℃.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.

Construction:

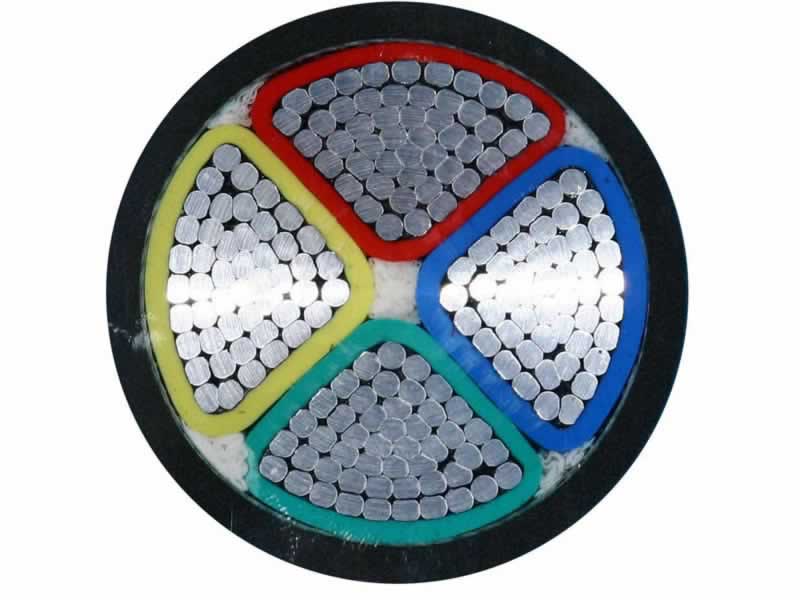

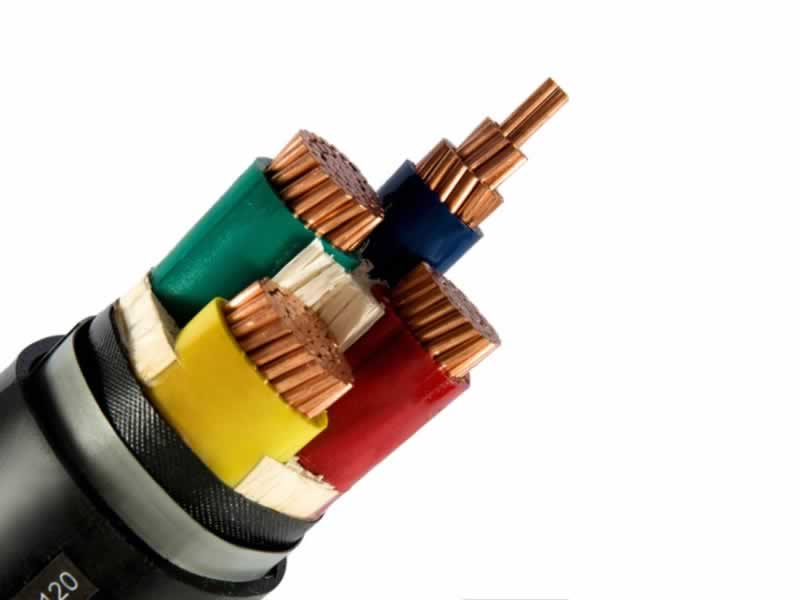

0.6/1kV Single Core or Multi Cores, Circular Compacted Al or Cu/PVC/PVC armoured or Un-Armoured Power Cable.

0.6/1kV PVC Insulated Power Cable Conductor Insulation Armor Outer Sheath
Aluminum Copper PVC SW ST DST AW PVC PE
Cu/PVC/PVC   P P P
Cu/PVC/PE   P P   P
Al/PVC/PVC P   P P
Al/PVC/PE P   P   P
Cu/PVC/STA/PVC   P P P P
Cu/PVC/STA/PE   P P P   P
Al/PVC/STA/PVC P   P P P
Al/PVC/STA/PE P   P P   P
Cu/PVC/DSTA/PVC   P P P P
Cu/PVC/DSTA/PE   P P P   P
Al/PVC/DSTA/PVC P   P P P
Al/PVC/DSTA/PE P   P P   P
Cu/PVC/SWA/PVC   P P P P
Cu/PVC/SWA/PE   P P P   P
Al/PVC/SWA/PVC P   P P P
Al/PVC/SWA/PE P   P P   P
Cu/PVC/AWA/PVC   P P P P
Cu/PVC/AWA/PE   P P P   P
Al/PVC/AWA/PVC P   P P P
Al/PVC/AWA/PE P   P P   P
Armor material :   SW=steel wire, ST=steel tape, DST=double steel tape, AW=aluminum wire


It shows us the most common sizes of conductor, but other sizes to any recognized standards or customer specification can also be supplied as per customer's requirements.

Low Voltage PVC Power Cable
Voltage rating
No. x Nominal Cross Section of Conductor             No. x  mm2
single core two cores three cores 3+1 cores Four cores 3+2 cores 4+1 cores 5 core
0.6/1 kV

1×4 mm2 2×4 mm2 3×4 mm2 3×4 mm2 + 1×2.5mm2 4×4 mm2 3×4 mm2 + 2×2.5mm2 4×4 mm2 + 1×2.5mm2 5×2.5 mm2
1×6 mm2 2×6 mm2 3×6 mm2 3×6 mm2 + 1×4 mm2 4×6 mm2 3×6 mm2 + 2×4 mm2 4×6 mm2 + 1×4 mm2 5×4 mm2
1×10 mm2 2×10 mm2 3×10 mm2 3×10 mm2 + 1×6 mm2 4×10 mm2 3×10 mm2 + 2×6 mm2 4×10 mm2 + 1×6 mm2 5×6 mm2
1×16 mm2 2×16 mm2 3x16mm2 3×16 mm2 + 1×10 mm2 4×16 mm2 3×16 mm2 + 2×10 mm2 4×16 mm2 + 1×10 mm2 5×10 mm2
1x 25 mm2 2x 25 mm2 3x 25 mm2 3×25 mm2 + 1x16mm2 4×25 mm2 3×25 mm2 + 2x16mm2 4×25 mm2 + 1x16mm2 5×16 mm2
1×35 mm2 2×35 mm2 3x 35 mm2 3×35 mm2 + 1x16mm2 4×35 mm2 3×35 mm2 + 2x16mm2 4×35 mm2 + 1x16mm2 5×25 mm2
1×50 mm2 2×50 mm2 3x 50 mm2 3×50 mm2 + 1x25mm2 4×50 mm2 3×50 mm2 + 2x25mm2 4×50 mm2 + 1x25mm2 5×35 mm2
1×70 mm2 2×70 mm2 3x 70 mm2 3×70 mm2 + 1x35mm2 4×70 mm2 3×70 mm2 + 2x35mm2 4×70 mm2 + 1x35mm2 5×50 mm2
1×95 mm2 2×95 mm2 3x 95 mm2 3×95 mm2 + 1x50mm2 4×95 mm2 3×95 mm2 + 2x50mm2 4×95 mm2 + 1x50mm2 5×70 mm2
1×120 mm2 2×120 mm2 3x 120 mm2 3x120mm2 + 1x70mm2 4×120 mm2 3x120mm2 + 2x70mm2 4x120mm2 + 1x70mm2 5×95 mm2
1×150 mm2 2×150 mm2 3x 150 mm2 3x150mm2 + 1x70mm2 4×150 mm2 3x150mm2 + 2x70mm2 4x150mm2 + 1x70mm2
1×185 mm2 2×185 mm2 3x 185 mm2 3x185mm2 + 1x95mm2 4×185 mm2 3x185mm2 + 2x95mm2 4x185mm2 + 1x95mm2
1×240 mm2 2×240 mm2 3x 240 mm2 3x240mm2 + 1x120mm2 4×240 mm2 3x240mm2 + 2x120mm2 4x240mm2 + 1x120mm2
1×300 mm2   3x 300 mm2 3x300mm2 + 1x150mm2 4×300 mm2 3x300mm2 + 2x150mm2 4x300mm2 + 1x150mm2
1×400 mm2
1×500 mm2
1×630 mm2



JYTOP Cable is a professional LV PVC Power Cable (Low Voltage PVC Insulated PVC Sheathed Power Cable) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!

Low Voltage PVC Insulated PVC Sheathed Power Cable,LV PVC Power Cable specifications(data sheet,table,full form)

0.6-1kV PVC Insulated Power Cable specification
