LSZH Cable,Low Smoke Zero Halogen Cable

  • Standard:IEC 60754-1/BS6425-1,BS 6004
  • Structure::Cu(Al)/XLPE/CTS(STA)/PVC
  • Min.Order QTY: 300m/reels
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

LSZH Cable (Low Smoke Zero Halogen Cable)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Low Smoke Zero Halogen Cable

Application:
Low smoke zero Halogen cable used in public and government buildings and where there is sensitive electronic equipment (i.e. Hospitals, Supermarkets, Airports, Control Rooms & Computer Suites) these cables are designed for increased safety in the case of a fire:Reduction in hazardous fumes which can cause injury when inhaled; Reduction in corrosive chemicals which can cause damage to electronics; Most cables used in installations have been insulated with PVC or similar materials.XLPE Insulated halogen-free low smoke cable may prevent human from being suffocated by toxic gas generated from accidental burning of wire and cable.Such as fire-resistant flame-retardant cable, do not catch fire easily and do not spread the fire or give off toxic gas when on fire.They are suitable for using in the circumstance with fairly strict flame retardant and environmental protection requirement,such as high-rise buildings,hospitals,subways and shopping malls.

Property:
1) The temperature of laying cable is not lower than 0oC.
2) Max. continuous normal operating Temperature: 90oC
3) Max. permissible temperature at short circuit (5s. at longest): 250oC.
4) Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%
(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).

LSZH Cables intended to fulfil this type of function are often labelled as one of the following:
LSZH – Low Smoke Zero Halogen
LSOH – Low Smoke Zero Halogen
LSF – Low Smoke and Fume
OHLS – Zero Halogen Low Smoke
Both LSZH and LSF are used to limit smoke, fumes and halogen given off in fire conditions.

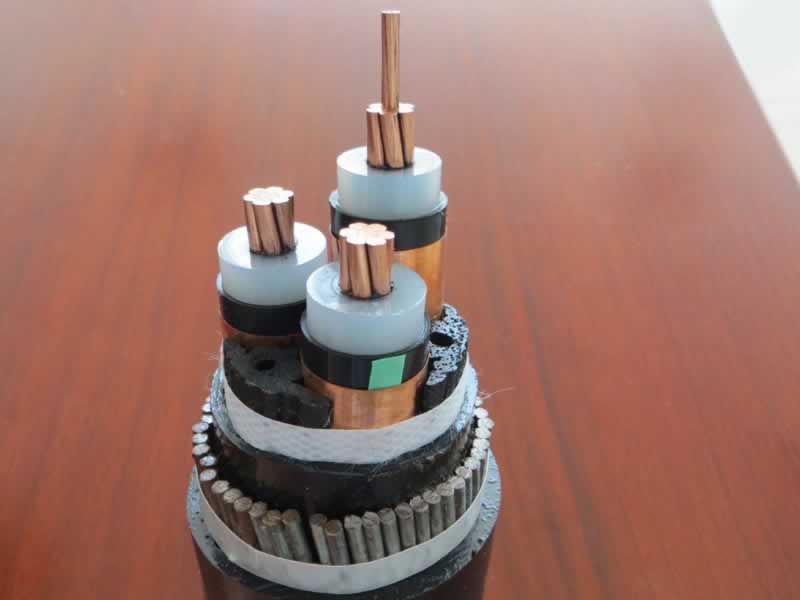

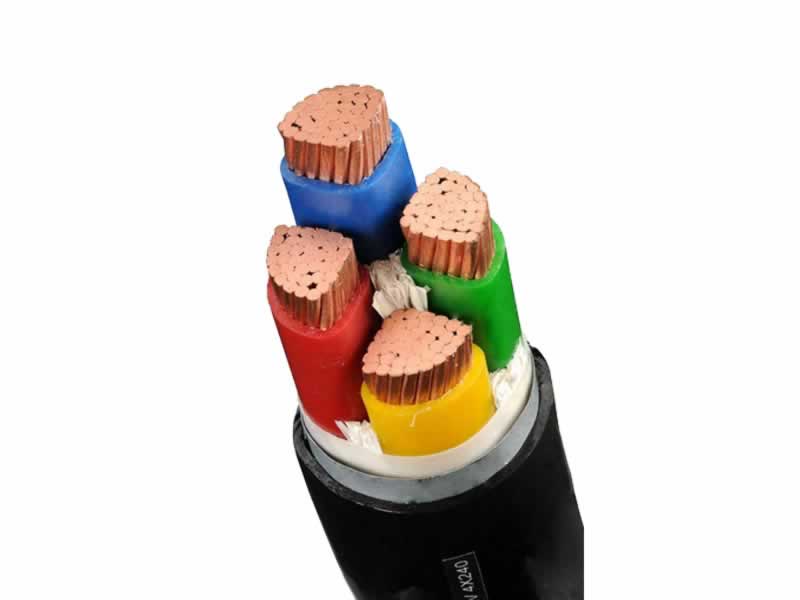

Construction:

Conductor  Solid, Stranded Copper or Aluminum
Insulation  XLPE
Amouring  1)Non-armoued
 2)Steel tape armoured (STA)
 3)Steel wire armoured(SWA)
 Aluminum wire armoured(AWA)
Sheath  LSOH material

JYTOP Cable is a professional LSZH Cable (Low Smoke Zero Halogen Cable) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!
