H07V-U,H07V-R,H07V-K,450/750V Copper Conductor PVC insulated Wire

  • Standard:DIN VDE 0281-3, BS 6004, HD 21.3;
  • Structure:Cu(Al)/PVC/PVC
  • Min.Order QTY: 1km
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

H07V-U,H07V-R,H07V-K (450/750V Copper Conductor PVC insulated Wire)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Application:

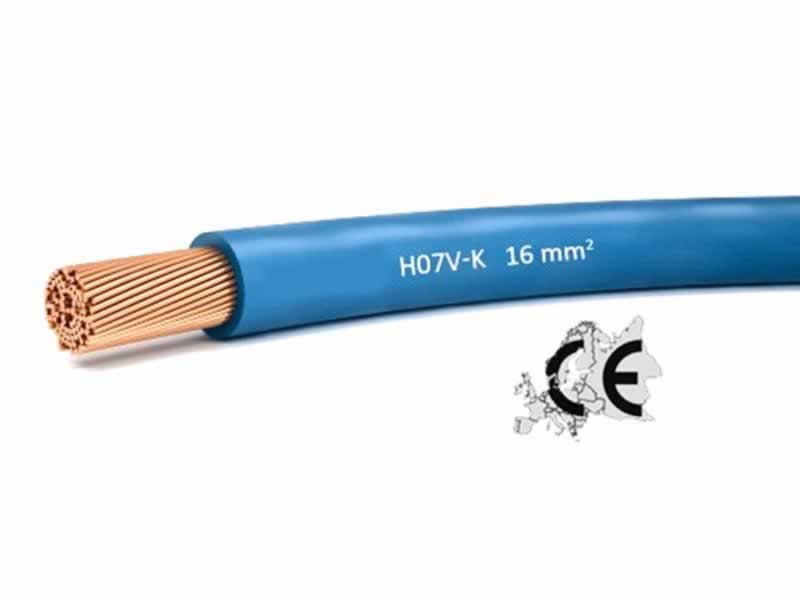

H07V-K cable is used for the internal wiring of electric motors and transformers as well as other electrical appliances and lighting applications. It can be used in and at electronic appliances for measuring, regulating and controlling. The cables are also ideal for laying in pipes, surface wiring and conduit installations. Specifications according to HD 516 apply for respective specific applications.

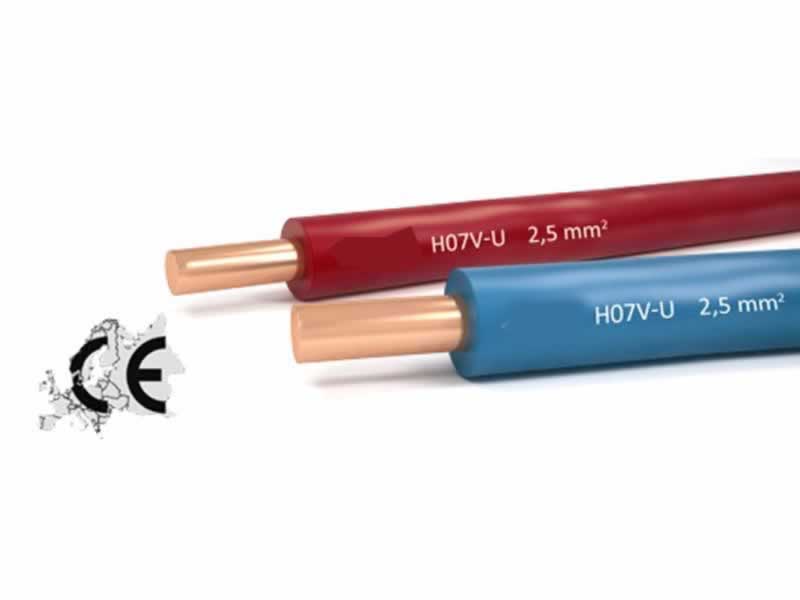

H07V-U cable is intended for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.

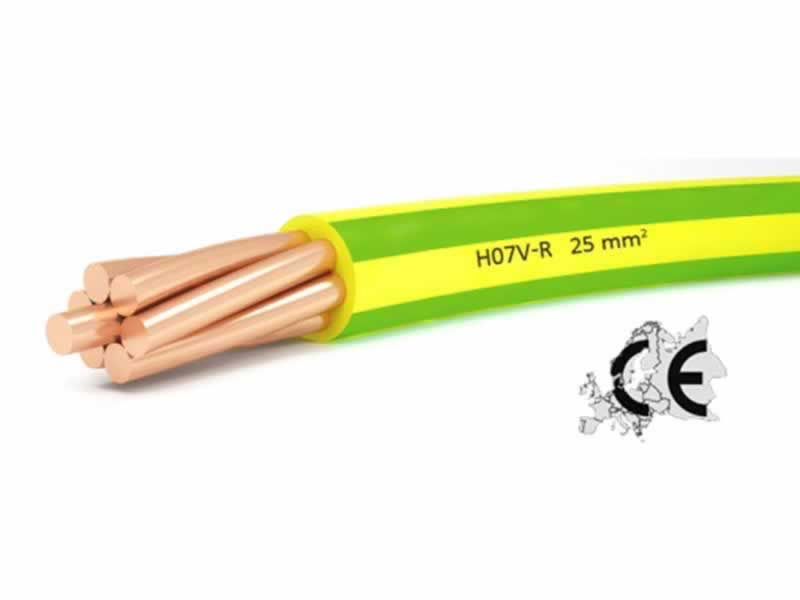

H07V-R cable is preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required. Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.

H07V -K -U -R PVC Industrial Cable 450/750V Construction:

Conductor material: H07V-U Solid Copper Class 1 to VDE0295/IEC60228
H07V-R Stranded Copper wire Class 2 to VDE0295/IEC60228
H07V-K Bare copper strands Class 5 to VDE-0295/IEC 60228
Insulation: PVC

Kabel H07V-K/ H07V-U/ H07V-R  450/750V Technical Data:

Rated voltage 450/750V
Test voltage 2500V
Flexing bending radius 12.5 x Ø
Static bending radius 12.5 x Ø
Flexing temperature -5º C to +70º C
Static temperature -30º C to +80º C
Flame retardant IEC 60332.1
Insulation resistance 10 MΩ x km

Packing:
a)Packing lengths: 100ft/roll, 100m/roll, 300ft/roll.
b) Inner packing: wooden drum, plastic drum, paper drum.
c) Outer packing: carton box, pull out box.
d) Other packing available according to customer.

H07V-K PVC electric wire 450/750V Specification:

AWG No. of Cores x
Nominal Cross Sectional Area
# x mm²
Nominal
Overall Diameter
Nominal
Copper Weight kg/Km
Nominal Weight
kg/Km
16(30/30) 1 x 1.5 3.1 14.4 20
14(50/30) 1 x 2.5 3.6 24 31
12(56/28) 1 x 4 4.3 38 48
10(84/28) 1 x 6 4.9 58 69
8(80/26) 1 x 10 6.4 96 121
6(128/26) 1 x 16 8.1 154 211
4 (200/26) 1 x 25 9.8 240 303
2 (280/26) 1 x 35 11.1 336 417
1 (400/26) 1 x 50 13.1 480 539
2/0 (356/24) 1 x 70 15.5 672 730
3/0 (485/24) 1 x 95 17.2 912 900
4/0 (614/24) 1 x 120 19.7 1152 1135
300 MCM (765/24) 1 x 150 21.3 1440 1410
350 MCM (944/24) 1 x 185 23.4 1776 1845
500MCM(1225/24) 1 x 240 27.1 2304 2270

kabel H07V-U PVC Electric Cable 450/750V Specification:

AWG No. of Cores x
Nominal Cross Sectional Area
# x mm²
Nominal
Overall Diameter
Nominal
Copper Weight
kg/Km
Nominal Weight
kg/Km
20 1 x 0.5 2.1 4.8 9
18 1 x 0.75 2.2 7.2 11
17 1 x 1 2.4 9.6 14
16 1 x 1.5 2.9 14.4 21
14 1 x 2.5 3.5 24 33
12 1 x 4 3.9 38 49
10 1 x 6 4.5 58 69
8 1 x 10 5.7 96 115

H07V-R PVC electric wire Cable 450/750V Specification:

AWG No. of Cores x
Nominal Cross Sectional Area
# x mm²
Nominal
Overall Diameter
Nominal
Copper Weight
kg/Km
Nominal Weight
kg/Km
16(7/24) 1 x 1.5 3 14.4 23
14(7/22) 1 x 2.5 3.6 24 35
12(7/20) 1 x 4 4.2 39 51
10(7/18) 1 x 6 4.7 58 71
8(7/16) 1 x 10 6.1 96 120
6(7/14) 1 x 16 7.2 154 170
4(7/12) 1 x 25 8.4 240 260
2(7/10) 1 x 35 9.5 336 350
1(19/13) 1 x 50 11.3 480 480
2/0(19/11) 1 x 70 12.6 672 680
3/0(19/10) 1 x 95 14.7 912 930
4/0(37/12) 1 x 120 16.2 1152 1160
300MCM(37/11) 1 x 150 18.1 1440 1430
350MCM(37/10) 1 x 185 20.2 1776 1780
500MCM(61/11) 1 x 240 22.9 2304 2360
  1 x 300 24.5 2880 2940
  1 x 400 27.5 3840 3740

450/750V Copper Conductor PVC insulated Wire,H07V-U,H07V-R,H07V-K specifications(data sheet,table,full form)

JYTOP Cable is a professional H07V-U,H07V-R,H07V-K (450/750V Copper Conductor PVC insulated Wire) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!
