H05V-U,H05V-R,H05V-K,300/500V Copper Conductor PVC Insulated Wire

  • Standard:DIN VDE 0281-3, BS 6004, HD 21.3
  • Structure:Cu(Al)/PVC/PVC
  • Min.Order QTY: 1km
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

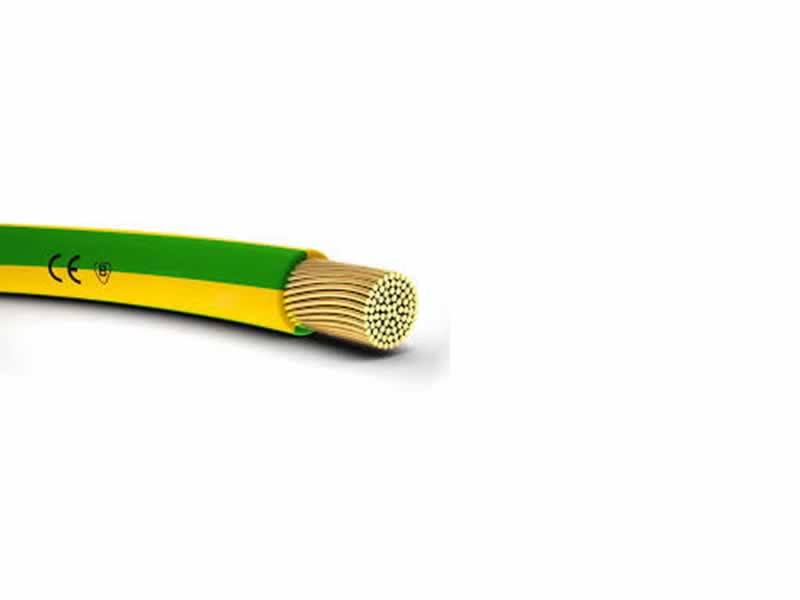

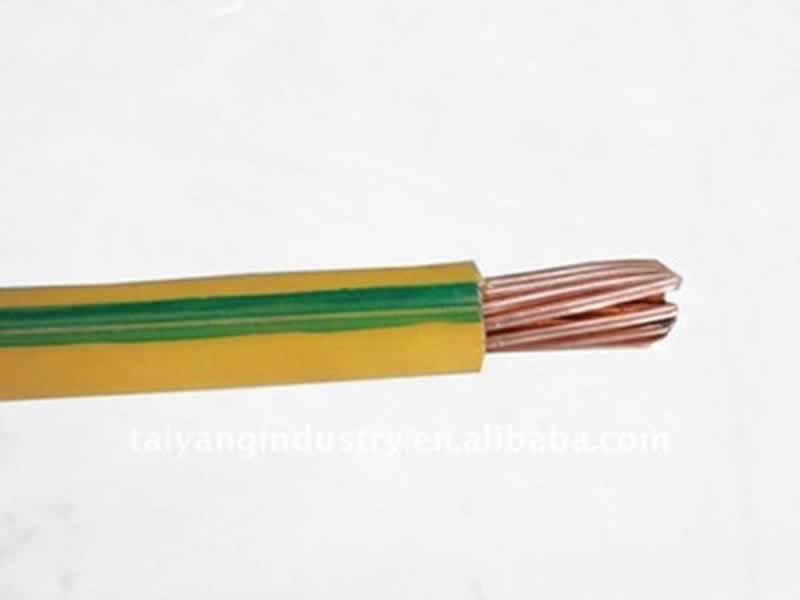

H05V-U,H05V-R,H05V-K (300/500V Copper Conductor PVC Insulated Wire)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Construction:

Conductors: annealed copper conductor acc. to EN 60228, :

class 1 solid H05V-U,

class 2 stranded H05V-R,

class 5 flexible H05V-K,

Insulation: PVC compound type

Colour of insulation: green/yellow, blue, black, brown or other colours.

Maximum conductor operating temperature: +70°C

Lowest ambient temperature for fixed installation (static): -30°C

Lowest installation temperature (flexing): -5°C

Maximum short-circuit conductor temperature: +160°C

Test voltage 50Hz: 2000V

Flame propagation: IEC 60332-1-2

Minimum bending radius: 4 x cable diameter

Cable Packing : 100m/reels, other forms of packing and delivery are available on request.

Application:

H05V-K cable is used for the internal wiring of electric motors and transformers as well as other electrical appliances and lighting applications. It can be used in and at electronic appliances for measuring, regulating and controlling. The cables are also ideal for laying in pipes, surface wiring and conduit installations. Specifications according to HD 516 apply for respective specific applications.

H05V-U cable is intended for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.

H05V-R is preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required.Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.


H05V-K -U -R PVC Industrial Cable 300/500V Technical Data :

Rated voltage 300/500V
Test voltage 2000V
Flexing bending radius 12.5 x Ø
Static bending radius 12.5 x Ø
Flexing temperature -5º C to +70º C
Static temperature -30º C to +80º C
Flame retardant IEC 60332.1
Insulation resistance 10 MΩ x km

Kabel H05V-K PVC electric wire 300/500V Specification

CONSTRUCTIONn x mm2 OUTER DIAMETERcca. mm Cu WEIGHTkg / km CABLE WEIGHTcca. kg / km
1 x 1.5 3 14,4 20
1 x 2.5 3,6 24 30
1 x 4 4,1 38 50
1 x 6 4,6 58 65
1 x 10 6 96 110
1 x 16 7 154 165
1 x 25 8,5 240 242
1 x 35 9,9 336 350
1 x 50 11,7 480 482
1 x 70 11,7 672 662
1 x 95 15,3 912 885
1 x 120 16,8 1152 1123
1 x 150 19,2 1440 1390
1 x 185 21,3 1776 1733
1 x 240 23,8 2304 2264

H05V-U PVC electric Cable 300/500V Specification

AWG No. of Cores x
Nominal Cross Sectional Area
# x mm²
Nominal Overall
Diameter
mm
Nominal Copper
Weight kg/Km
Nominal Weight
kg/Km
20 1 x 0.5 2.1 4.8 9
18 1 x 0.75 2.2 7.2 11
17 1 x 1 2.4 9.6 14
16 1 x 1.5 2.9 14.4 21
14 1 x 2.5 3.5 24 33
12 1 x 4 3.9 38 49
10 1 x 6 4.5 58 69
8 1 x 10 5.7 96 115

H05V-R PVC wires 300/500V Specification

AWG No. of Cores x
Nominal Cross Sectional Area
# x mm²
Nominal Overall
Diameter(mm)
Nominal Copper Weight
kg/Km
Nominal Weight
kg/Km
20(7/29) 1 x 0.5 2.2 4.8 9
18(7/27) 1 x 0.75 2.4 7.2 12
17(7/26) 1 x 1 2.6 9.6 15

300/500V Copper Conductor PVC Insulated Wire,H05V-U,H05V-R,H05V-K specifications(data sheet,table,full form)
