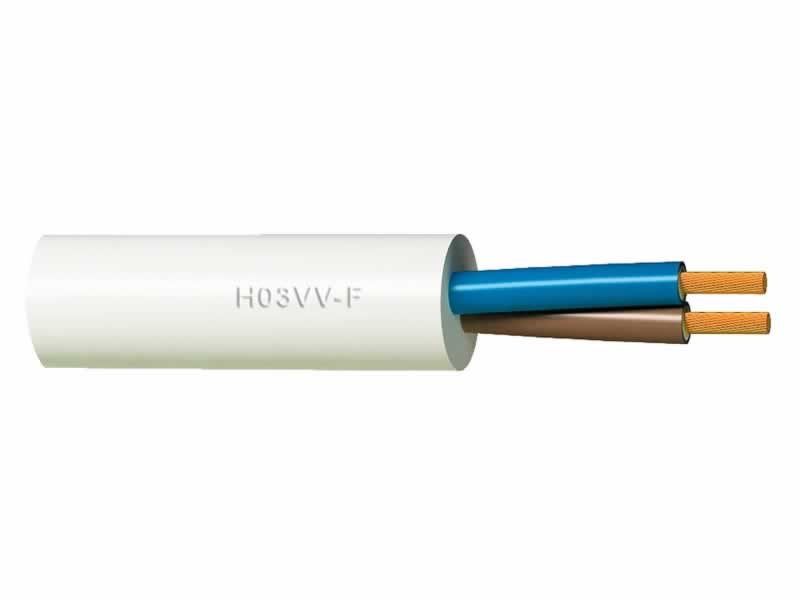

H03VV-F,H03VVH2-F,300V Copper Round/Flat PVC Insulated PVC Sheathed Cable

  • Standard:IEC 60332-1, VDE 0281,BS6500
  • Structure:Cu(Al)/PVC/PVC
  • Min.Order QTY: 1km
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

H03VV-F,H03VVH2-F (300V Copper Round/Flat PVC Insulated PVC Sheathed Cable)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Application:
H03VV-F/H03VVH2-F is round/flat PVC insulated PVC sheathed cable for connecting electric appliances, devices and instruments i.e. table lamp and radio to the power supply network.

Description :
kabel H03VV-F / H03VVH2-F cable are especially suited for use on small appliances with low mechanical stress and for connection for light household appliances, e.g. kitchen utensils, desk lamps, floor lamps, vacuum cleaners, office machines, radios, offices;for household appliances, including in damp premises; for medium duties (eg. washing machines, spin dryers, and refrigerators). As far as these cables are admitted to the relevant specifications of the equipment, They are not permitted for use with cooking or heating apparatus. Cables with cross section 0.75 mm² are not suitable for outdoor use or use of industrial or farmer machineries. Max operating voltage in single or three phase system is Uo/U 330/330 volts. In a direct current system max operating voltage is Uo/U 495/495 volts.

Construction :

Conductor Bare copper fine wire conductor, DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383
Insulation PVC core insulation to VDE-0281 Part 1,Color coded to VDE-0293-308,Green-yellow grounding    (3 conductors and above)
Sheath PVC outer jacket

H03VV-F Cable 300/300V Technical Data:

Rated voltage Uo/U 300/300V
Test voltage 2000V
minimum bending radius mobile : 15D;
fixed :4D
(D – diameter or height of cable)
minimum temperature during installation – 5 °C
temperature of environment mobile: – 5 °C to
+50 °C; fixed: -30 °C to +50 °C
max. conductor temperature at short circuit for 5 s 160°C
maximum conductor temperature +70°C
Insulation resistance at 70 °C min 2 x 1010 Ω.cm
flame test flame-retardant acc. to IEC 60332-1

H03VV-F / H03VVH2-F date sheet :

AWG No. of Cores x Nominal Cross Sectional Area # x mm² Nominal Overall Diameter mm Nominal Copper Weight kg/Km Nominal Weight kg/Km Nominal Copper Weight kg/Km Nominal Weight kg/Km
H03VV-F
20(16/32) 2 x 0.50 0.5 0.6 5 9.6 38
20(16/32) 3 x 0.50 0.5 0.6 5.4 14.4 45
20(16/32) 4 x 0.50 0.5 0.6 5.8 19.2 55
18(24/32) 2 x 0.75 0.5 0.6 5.5 14.4 46
18(24/32) 3 x 0.75 0.5 0.6 6 21.6 59
18(24/32) 4 x 0.75 0.5 0.6 6.5 28.8 72
18(24/32) 5 x 0.75 0.5 0.6 7.1 36.0 87

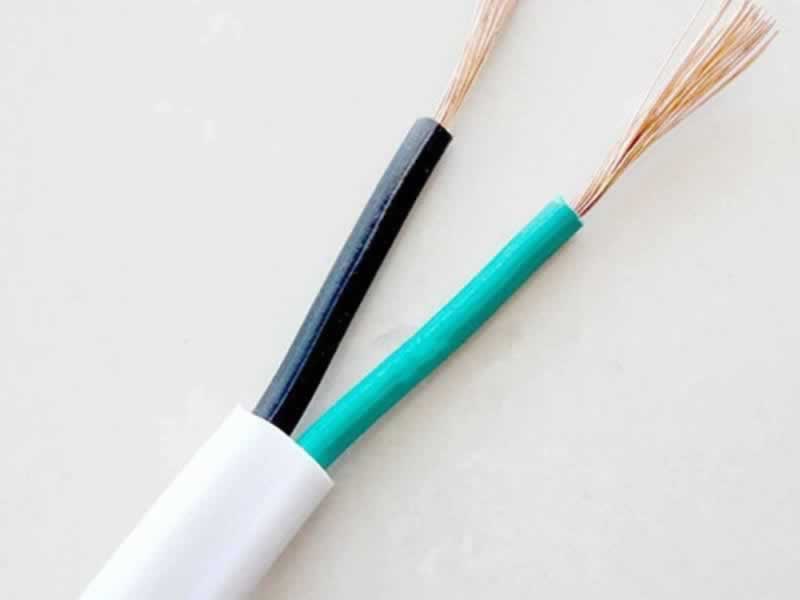

kable H03VVH2-F
20(16/32) 2 x 0.50 0.5 0.6 3.2 x 5.2 9.7 32
18(24/32) 2 x 0.75 0.5 0.6 3.4 x 5.6 14.4 35


JYTOP Cable is a professional H03VV-F,H03VVH2-F (300V Copper Round/Flat PVC Insulated PVC Sheathed Cable) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!
