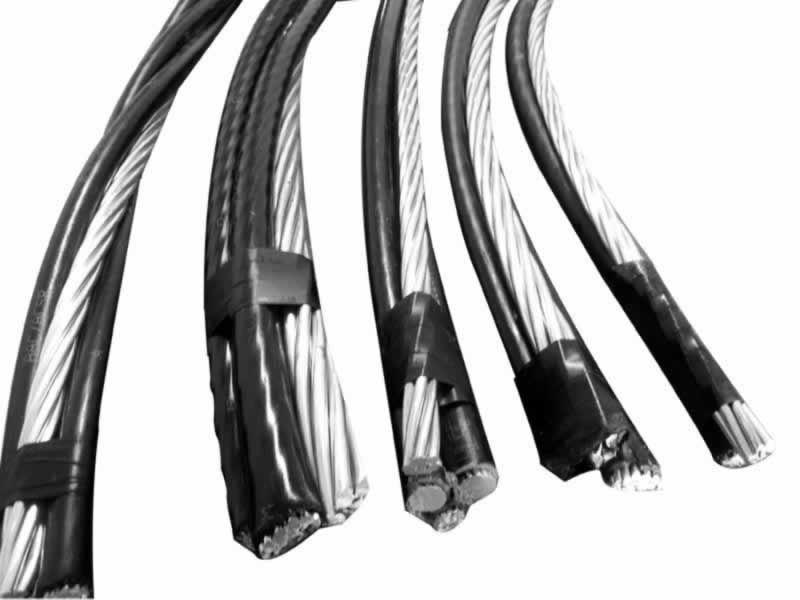

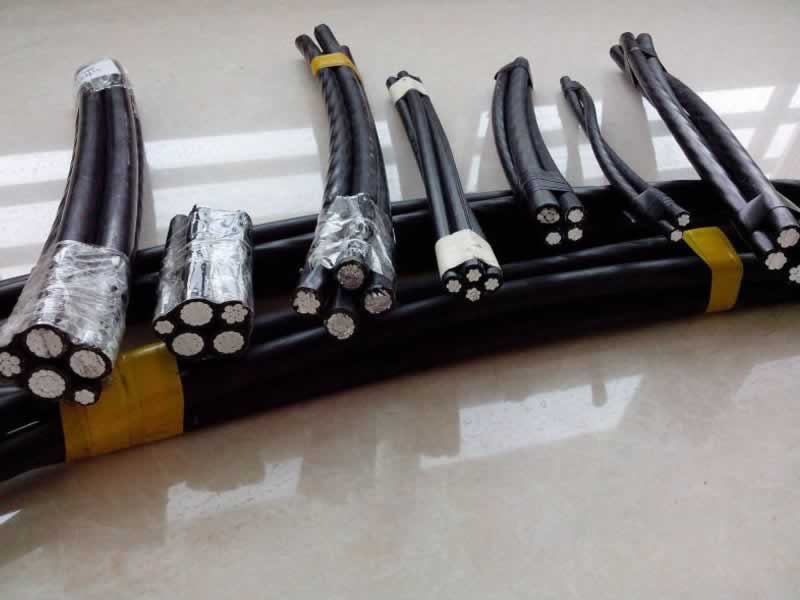

ABC cable,Aerial bundled cable

  • Standard:ASTM B232,BS215,DIN48204,JISC3109,AS,IEC,NFC,SS
  • Capacity:5000km/week
  • Min.Order QTY: 1000 meters
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

ABC cable (Aerial bundled cable)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Application:

Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional overhead bare conductor distribution system.It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.Caledonian LV Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting.This overhead cable provides reinforced insulation acc. IEC 61140 and fulfill therefore Class II acc. IEC 61140. It is not flame retardant. But this could be if requested change to a flame retardant cable.

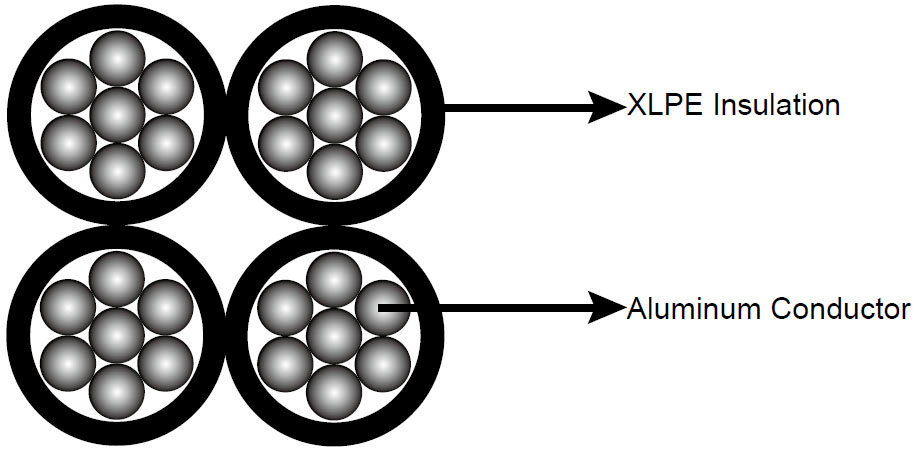

Construction:

Conductor: Aluminium conductor, round stranded compressed (RM).
Insulation: XPLE compound, UV-resistant.
Core Identification: 1, 2 resp. 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm^2 and a minimum of 16 ribs for cores above 50 mm^2. In the case of five core bundles the surface of the protective core should be smooth.

Phase
Conductor
stranded aluminum wires (AAC)
Insulation black thermosetting cross-linked polyethylene (XLPE)
thermoplastic low density polyethylene (LDPE)
thermoplastic high density polyethylene (HDPE)
Neutral stranded aluminum wires (AAC)
stranded aluminum alloy wires (AAAC)
stranded aluminum conductor steel reinforced (ACSR)

JYTOP Cable is a professional ABC cable (Aerial bundled cable) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!
