ACSR Conductor,Aluminum Conductor Steel Reinforced

  • Standard:ASTM, BS, DIN, JIS,etc
  • Capacity:2000ton/month
  • Min.Order QTY: 1000 meters
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

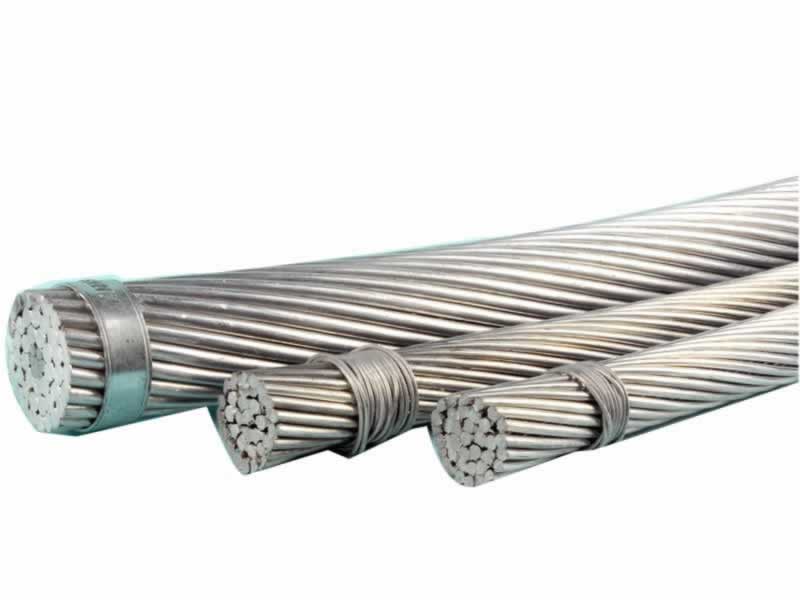

ACSR Conductor (Aluminum Conductor Steel Reinforced)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Construction:

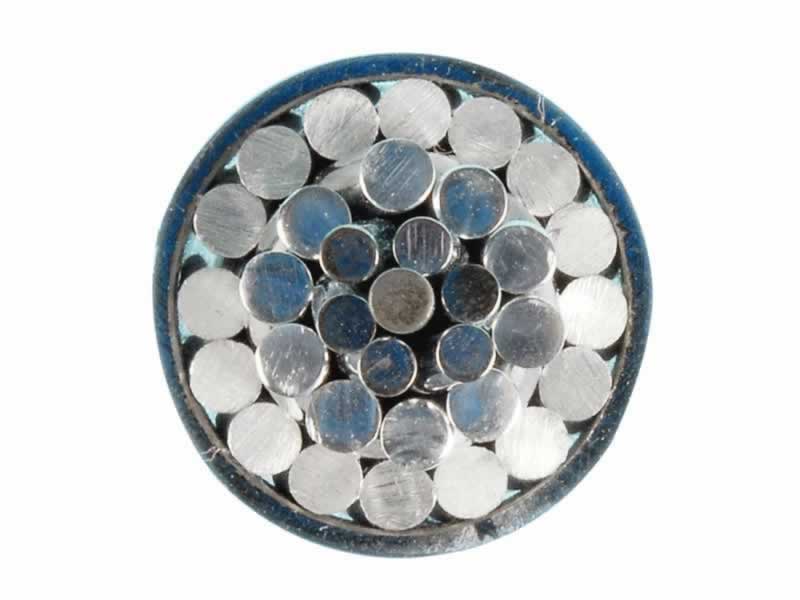

Aluminum Conductor Steel Reinforced (ACSR) is concentrically stranded conductor with one or more layers of hard drawn 1350-H19 aluminum wire on galvanized steel wire core. The core can be single wire or stranded depending on the size. Steel core wire is available in Class A , B or Class C galvanization for corrosion protection. Additional corrosion protection is available through the application of grease to the core or infusion of the completed conductor with grease.

Application :

ACSR are available in a range of steel contents ranging from 6% to 40% for additional strength. The higher strength ACSR conductors are commonly used for river crossings, overhead earth wires, and installations involving extra-long spans. The ACSR conductor can, against any given resistance, be manufactured to different tensile strengths, so a high tensile strength combined with its lightweight properties means it can cover longer distances with fewer supports. Due to the greater diameter of the ACSR conductor, a much higher corona limit can be obtained which is advantageous on high and extra high voltage overhead lines.



JYTOP Cable is a professional ACSR Conductor (Aluminum Conductor Steel Reinforced) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!

ACSR Conductor specifications,ACSR Conductor types,ACSR Conductor names,ACSR Conductor table,ACSR Conductor sizes,ACSR Conductor size chart,ACSR Conductor data sheet,ACSR Conductor full form

ACSR Conductor Specification To ASTM
Last modified 06/2016

ACSR Conductor Specification To BS
Last modified 06/2016

ACSR Conductor Specification To DIN
Last modified 06/2016

ACSR Conductor Specification To IEC61089
Last modified 06/2016

ACSR Conductor Specification To CSA C49
Last modified 06/2016
