6181Y Single Core copper conductor,PVC Insulated PVC Sheathed Electric Wiring Cables (300/500V)

  • Standard:BS, EN 60228.
  • Structure:50000Rolls/week
  • Min.Order QTY: 1km
  • Package: Wooden drum, Steel wooden drum, Coil, Box…
  • Payment Terms: T/T, L/C, D/P
  • Port: Qingdao, Shanghai, Tianjin, Ningbo, Shenzhen
  • Detail
  • Specifications
  • Enquiry

6181Y Single Core copper conductor (PVC Insulated PVC Sheathed Electric Wiring Cables (300/500V))meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.

Description :

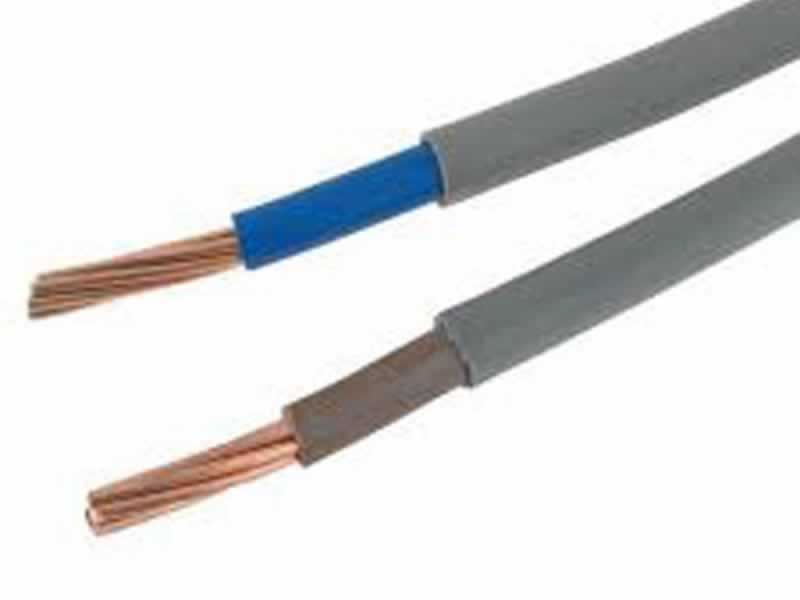

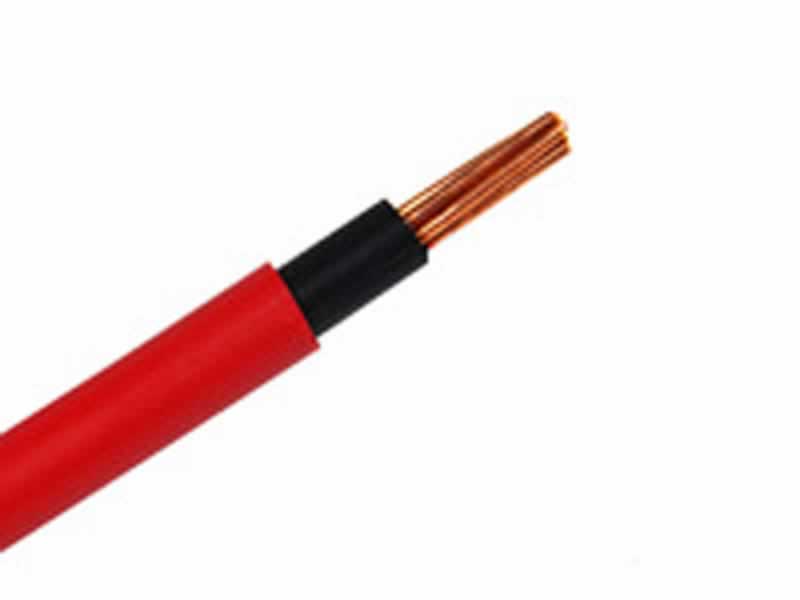

6491X PVC Insulated wire is a low voltage single core, PVC insulated copper conductor with an additional PVC oversheath for physical protection.Designed for use in light industrial and domestic wiring. These cables are particularly suited for installation as meter tails and are intended for fixed installation in dry or damp premises.

Application:
PVC electric wires can be installed in conduit, in cable trunking and in cable ducting. Or where there is deemed little risk of mechanical damage these cables can be clipped direct, on cable tray, embedded or in free air. These cables are not intended to be laid underground.

Construction:
1.Conductors: Solid or stranded plain annealed copper wire (class 1 or class 2) to BS, EN 60228.
2.Insulation: PVC;
3.Sheath: PVC;
4.Voltage rating (U0/U) 300/500V;
5.Max. Conductor temp 70°C;
6.Min, bending radius 4 x overall diameter of cable.

PVC Insulated PVC Sheathed Electric Wiring Cables (300/500V),6181Y Single Core copper conductor specifications(data sheet,table,full form)

JYTOP Cable is a professional 6181Y Single Core copper conductor (PVC Insulated PVC Sheathed Electric Wiring Cables (300/500V)) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!
