2491X (Single Core Copper Conductor PVC Insulated Flexible Cable)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
2491X (H05V-K / H07V-K) Cable Standards :
2491X cable is a Flexible PVC cable used for switch control in relay and instrumentation panels of power switchgear and is used for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Conductor: Flexible class 5 copper conductors to BS6360
Temperature Rating: 70°C
Voltage Rating: H05V-K for 300V ac and 500V dc; H07V-K for 450V ac and 750V dc
Minimum Bending Radius : 6 x overall diameter.

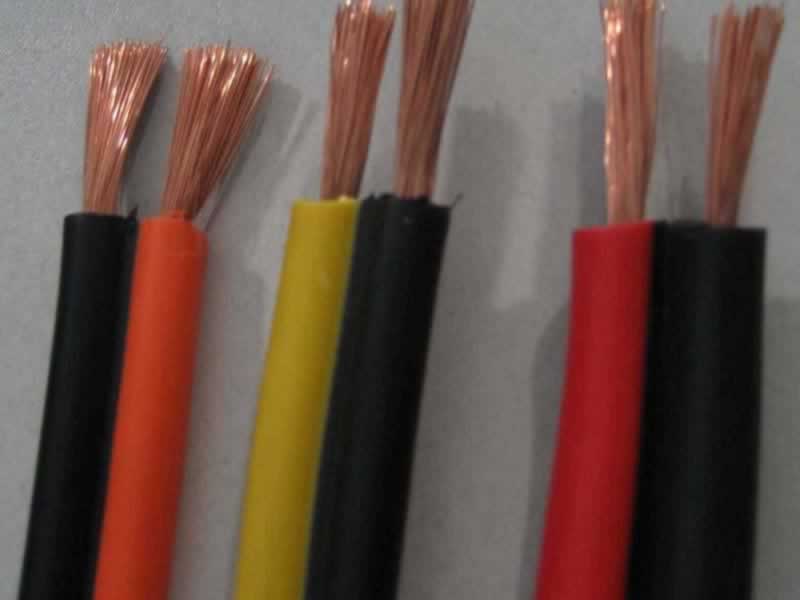

Colour : Black, Blue, Green/Yellow, Red, Yellow, White, Violet, Brown, Grey, Orange, Pink.
Packaging – 100, 500, 1,000 metre reels. Barrels and other lengths available upon request.
Single Core Copper Conductor PVC Insulated Flexible Cable,2491X specifications(data sheet,table,full form)
JYTOP Cable is a professional 2491X (Single Core Copper Conductor PVC Insulated Flexible Cable) manufacturer and supplier in China.Our products also include: AAC,AAAC,ACSR,ACAR, Galvanized Steel Wire, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable, rubber cable, control cable, etc. Any Interested, Pls feel free to email us,we will reply to you that day feasible prices and material in time!
