Wooden Cable Drum Production

Logs, which are the raw materials of our products, are purchased through the forest products tenders opened by the state or through the sale of various other producers. Thanks to the high quality raw materials we attach great importance to, superior products are obtained.

The logs used in the production of the wooden cable reels, which is the Affiliated products of JYTOP, are primarily processed in the log cutting machine. Hundreds of m3 of logs are processed every day in these modern cutting machines. As a result of the processes, the timbers are obtained. Then, they are carefully stacked and left to dry in order to be used in reels suitable for their structures.

The material used for JRJ connector is the same as that used for cable manufacturing.

The cleanliness of JRJ fusion joint field operation is strictly controlled, and the production time is short

JRJ fusion joints are divided into straight joints and

insulated joints, which meet the requirements of IEC, GB and other standards.

JRJ is to restore the structural connection of the cable body and extend the operation life cycle of the cable system, i.e., without joint; Read.

JRJ is small in size and light in weight. For submarine cable connection, the connector can be made to be connected with the same diameter as the cable body.

The material is made of high-performance liquid silicone rubber, resistant to high temperature, especially suitable for use in harsh environment areas

The product adopts three-layer structure, with reliable quality and stable performance

Multiple electric field optimization design, product performance is guaranteed by both theory and practice

The conductive parts are made of high purity copper, and ensure

that the cable lug is firmly connected with the casing Small size, saving space

Main technical parameters

　　The main insulation of the product is the integral prefabricated structure, the high pressure shielding, the stress cone and the insulation piece are injected into a whole piece, the structure is simple, and the installation is convenient.

　　The outer shielding layer of the main insulating piece is made of semi conductive silicone rubber, so as to avoid the defect that the spraying surface is easy to be damaged.

　　The shell is made of high strength copper shell protection box, high mechanical strength, good sealing performance.

　　The main insulation parts have been tested in the factory according to the standard.

Products Comply With The Following Standards

　　GB/T 18890.3-2015 Power cables with cross-linked polyethylene insulation and their accessories for rated voltage of 220 kv(Um=252kV). Part 3: Accessories

　　IEC 62067-2011 Power cables with extruded insulation and their accessories for rated voltages above 150 kV (Um = 170 kV) up to 500 kV (Um = 550 kV). Test methods and requirements

Main technical parameters

　　The terminal is completely dry type structure, the internal is not filled with insulating oil, overcome the stress cone by soaking in the insulating oil aging, improve the service life of the stress cone, and avoids the terminal leakage phenomenon appeared in the process of running, is both environmental protection and free maintenance.

　　The combination of the spring pressing device, the application of cone surface close to the epoxy casing wall, can keep the interface pressure constant term, overcome the stress cone due to material aging phenomenon caused by the relaxation, to ensure the long-term and safe operation of the terminal.

　　Light weight, small size, compact structure, convenient installation and maintenance.

　　All the insulation parts are made of the factory, and the epoxy casing is embedded in the high pressure metal shield electrode. The rubber stress cone is used to import the high elastic liquid silicone rubber, and the structure shape of the stress cone product is opti-mized.

　　The main insulation parts have been tested in the factory according to the standard.

Products Comply With The Following Standards

　　　　GB/T 18890.3-2015 Power cables with cross-linked polyeth-ylene insulation and their accessories for rated voltage of 220 kV (Um=252kV).Part 3: Accessories

　　IEC 62067-2011 Power cables with extruded insulation and their accessories for rated voltages above 150 kV (Um = 170 kV) up to 500 kV (Um = 550 kV). Test methods and requirements

Main technical parameters

　　Epoxy pipe coated with silicone rubber umbrella skirt, flexible composite insulation material security riot, can ensure the safety of the electrical equipment and personnel around, suit-able for centralized place to populated areas and electric equipment.

　　Composite tube light weight, convenient transportation and installation.

　　Stress cone using imported high elastic liquid silicone rubber, and carry on finite element optimization design, effectively solve the problem of electric field stress concentration.

　　Excellent hydrophobic properties and creepage resistance, arc resistance, good weatherability and the fouling resistance, unfavorable external insulation aging.

　　Main insulation parts have been stipulated in the standard after testing in the factory.

Products Comply With The Following Standards

　　GB/T 18890.3-2015 Power cables with cross-linked polyeth-ylene insulation and their accessories for rated voltage of 220 kV (Um=252kV).Part 3:Accessories

　　IEC 62067-2011 Power cables with extruded insulation and their accessories for rated voltages above 150 kV (Um = 170 kV) up to 500 kV (Um = 550 kV). Test methods and requirements

Main technical parameters

　　　　Porcelain set using isostatic pressing molding process as a whole a molding, high mechanical strength, resistance to leak-age mark, electrical erosion resistance, insulation resistance and self-cleaning performance is good, not easy ageing, earth-quake resistant level is high, especially suitable for coastal and bad natural environment area.

　　Structure of large and small umbrella skirt and white, proved its excellent resistance to fouling characteristics.

　　Stress cone using imported high elastic liquid silicone rubber, and carry on finite element optimization design, effectively solve the problem of electric field stress concentration.

　　Adopts multi-layer sealing structure, sealed performance is good, to eliminate the phenomenon of porcelain sets appear flooding, such as oil, improve the service life of the terminal.

　　Main insulation parts has been stipulated in the standard after testing in the factory.

Products Comply With The Following Standards

　　　　GB/T 18890.3-2015 Power cables with cross-linked polyeth-ylene insulation and their accessories for rated voltage of 220 kV (Um=252kV).Part 3: Accessories

　　IEC 62067-2011 Power cables with extruded insulation and their accessories for rated voltages above 150 kV (Um = 170 kV) up to 500 kV (Um = 550 kV). Test methods and requirements

Main technical parameters

　　　　The main insulation of the product is the integral prefabricated structure, the high pressure shielding, the stress cone and the insulation piece are injected into a whole piece, the structure is simple, and the installation is convenient.

　　The outer shielding layer of the main insulating piece is made of semi conductive silicone rubber, so as to avoid the defect that the spraying surface is easy to be damaged.

　　The shell is made of high strength copper shell protection box, high mechanical strength, good sealing performance.

　　The main insulation parts have been tested in the factory accord-ing to the standard.

Products Comply With The Following Standards

　　　　GB/T 11017.3-2014 Power cables with cross-linked polyethylene insulation and their accessories for rated voltage of 110 kV(Um=126 kV). Part 3:Accessories

　　IEC 60840-2011 Power cables with extruded insulation and their accessories for rated voltages above 30 kV (Um = 36 kV) up to 150 kV (Um = 170 kV). Test methods and requirements

Main technical parameters

　　The whole terminal is a dry structure, the inner is not filled with insulating oil, both environmental protection, and maintenance free.

　　The combination of spring, the stress cone surface close to the

　　epoxy ring wall, can keep the interface pressure constant term. Easy installation, no need to charge six sulfur fluoride gas.

　　The main insulation parts have been tested in the factory accord ing to the standard.

Products Comply With The Following Standards

　　GB/T 11017.3-2014 Power cables with cross-linked polyethylene insulation and their accessories for rated voltage of 110 kv(Um=126 kV). Part 3:Accessories

　　IEC 60840-2011 Power cables with extruded insulation and their accessories for rated voltages above 30 kV (Um = 36 kV) up to 150 kV (Um = 170 kV). Test methods and requirements

　　IEC 62271-209-2007 High-voltage switchgear and controlgear. Part 209:Cable connections for gas-insulated metal-enclosed switchgear for rated voltages above 52 kV. Fluid-filled and extruded insulation cables. Fluid-filled and dry-type cable-terminations

　　GB/T 22381-2008 Cable connections for gas-insulated metal-enclosed switchgear for rated voltages of 72.5 kV and above. Fluid-filled and extruded insulation power cables. Fluid-filled and dry type cable-terminations

Main technical parameters

High quality of imported liquid silicone rubber, high strength, high elasticity, corona resistant, mark leakage resistance, ageing resistance.

No oil, explosion-proof, anti-seismic, light weight, mainte-nance-free.

Very convenient installation, flexible installation location, can be installed in vertical tilt.

External insulation ratio of leakage distance up to 35 mm/KV, and can provide the products for the special environment.

The stress cone surface at the top of product electric field intensi-ty, is covered by the umbrella skirt, to reduce the influence of external environment on the electric field distribution.

Main insulation parts have been tested according to the standard in the factory.

Products Comply With The Following Standards

GB/T 11017.3-2014 Power cables with cross-linked polyethylene insulation and their accessories for rated voltage of 110 kV(Um=126 kV). Part 3:Accessories

IEC 60840-2011 Power cables with extruded insulation and their accessories for rated voltages above 30 kV (Um = 36 kV) up to 150 kV (Um = 170 kV). Test methods and requirements

Main technical parameters

By epoxy pipe coated with silicone rubber umbrella skirt, casing with imported high quality liquid insulation filler, suitable for con-centrated area to populated areas and electric equipment.

Safety explosion-proof, no injury and personnel in and around elec-trical equipment.

Light weight, ease of installation.

The fouling resistance good, external insulation aging.

Main insulations’ parts have been stipulated in the standard after testing in the factory.

Products Comply With The Following Standards

GB/T 11017.3-2014 Power cables with cross-linked polyethylene insulation and their accessories for rated voltage of 110 kV (Um=126 kV). Part 3:Accessories

IEC 60840-2011 Power cables with extruded insulation and their accessories for rated voltages above 30 kV (Um = 36 kV) up to 150 kV (Um = 170 kV). Test methods and requirements

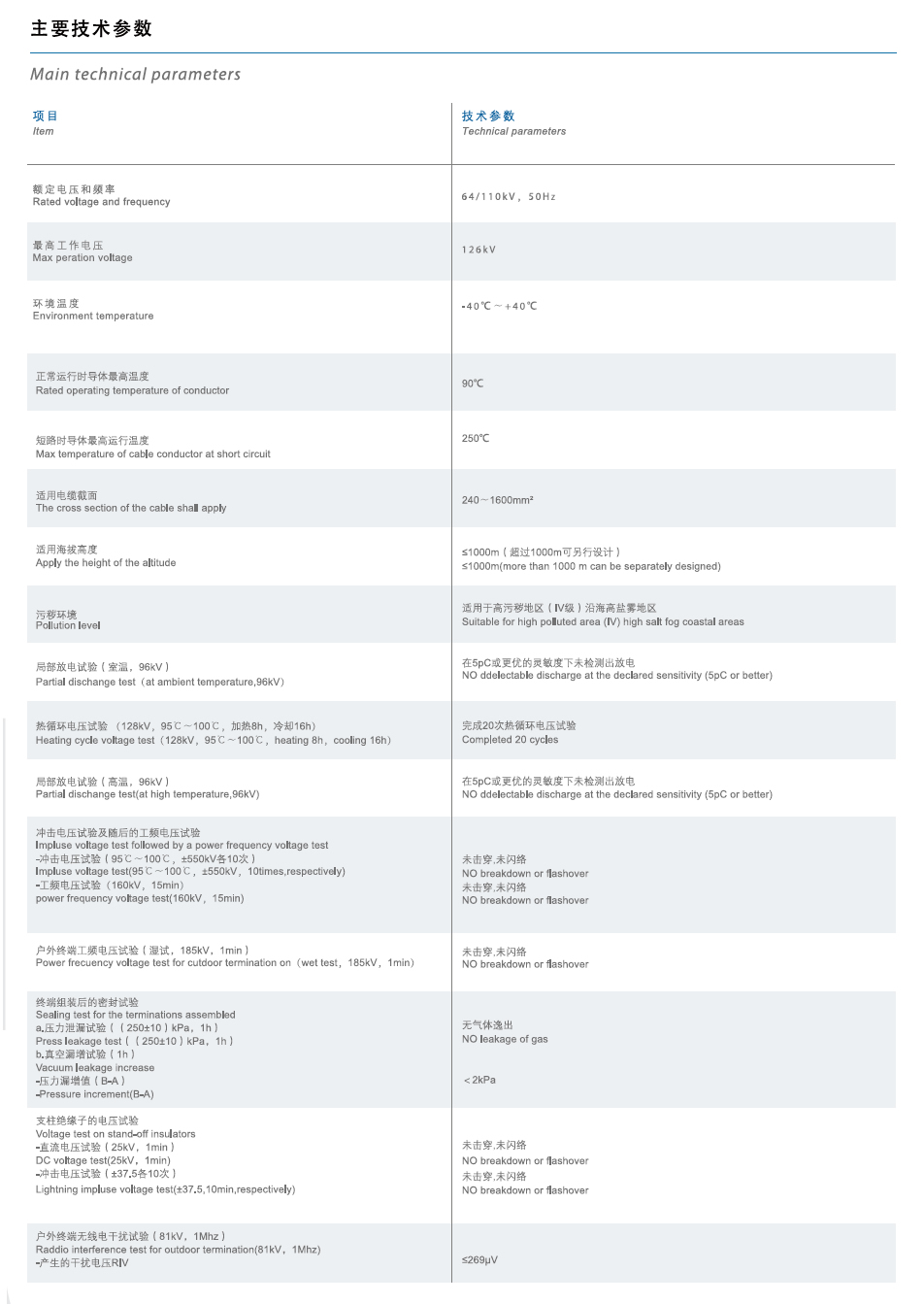

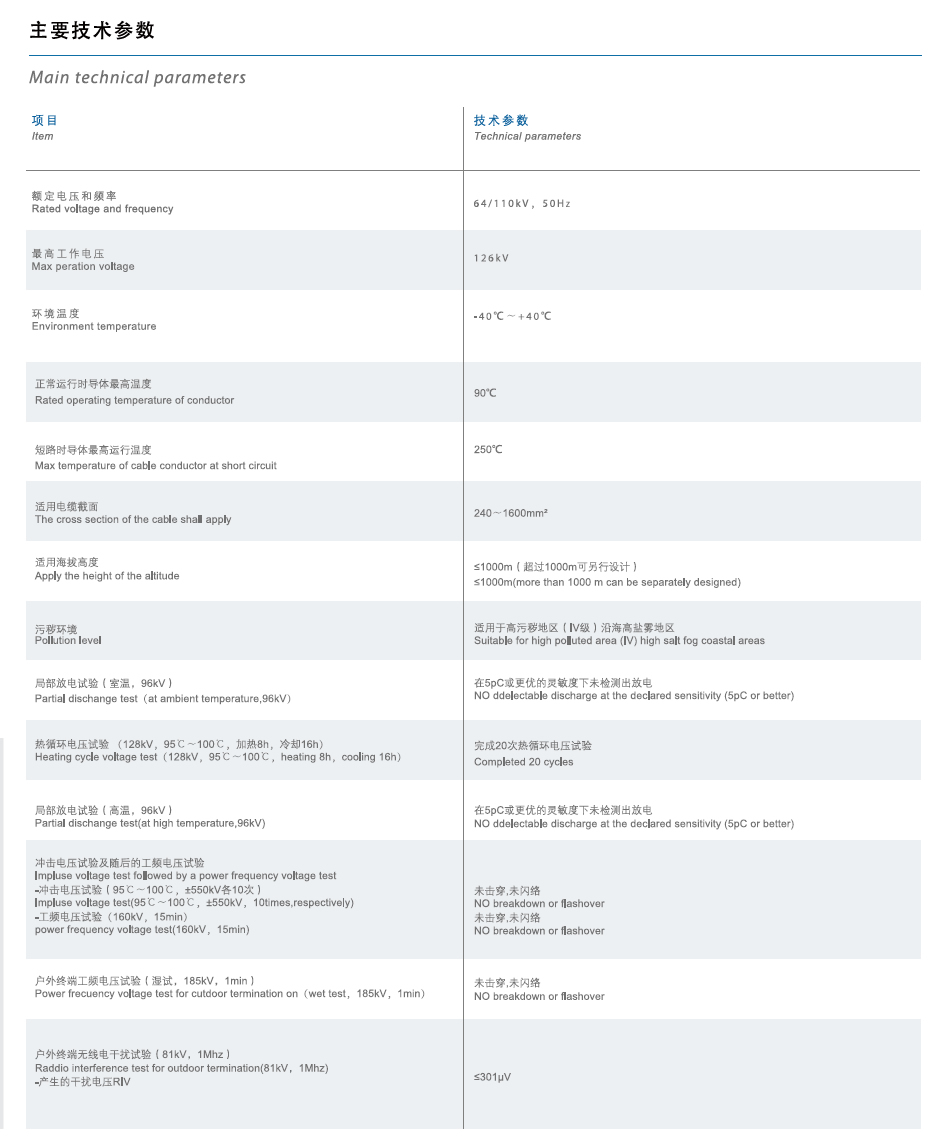

Main technical parameters

High strength porcelain bushing,high mechanical strength, good stability,notaging,especially suitablefor coastal andbad naturalenvironment area.

Use a umbrella skirt size and structure,proved its excellentresis-tance to fouling.

Specialsealstructuredesign,ealedperformanceisgoodputan end to the possible defects such as flooding, the oil spill.

Porcelain:there are two kinds of size 1280 mm high,the creep-age distanceis3150 mm,used in levellllpolluted area;3906 mm,1400 mm high,its creepagedistance is suitable forthelevel IV polluted area;

Maininsulation partsin thefactory according to theregulations of the standard after testing.

GB/T 11017.3-2014Power cables with cross-linked polyethylene insulation and their accessoriesforratedvoltageof110kV(Um=126 kV).Part 3:Accessories

IEC 60840-2011Power cables with extruded insulation and their accessories for rated voltages above 30 kv(Um = 36 kV) up to 150 kV (Um = 170 kV). Test methods and requirements

Products Comply With The Following Standards

GB/T 11017.3-2014 Power cables with cross-linked polyethylene insulation and their accessories for rated voltage of 110 kV (Um=126 kV). Part 3:Accessories

IEC 60840-2011 Power cables with extruded insulation and their accessories for rated voltages above 30 kV (Um = 36 kV) up to 150 kV (Um = 170 kV). Test methods and requirements

Main technical parameters

DEFINITION

The material of the cold shrink cable termination and the joint is an elastomer (usually silicone rubber or ethylene propylene rubber).  After special processing, it is vulcanized and injection molded in a mold, the material is stretched and expanded in the radial direction, and finally supported by plastic spirals to become part of the cable accessories.

PROCESS PRINCIPLE

Cold shrink termination cables and joints have a shrinkage property that allows them to fit perfectly into the cable. Then, the ports are sealed with semiconductor self-adhesive tape, which can make the cold-shrinkable cable termination have better insulation performance and achieve the effect of being waterproof and moisture-proof.

ADVANTAGES OF JYTOP COLD SHRINK TERMINATION KITS

Easy to install: Cold shrink technology does not require heating and no other tools. Low construction cost, suitable for construction in small construction space.
2. Wide range of applications: Cold shrink termination and cable joints use a unique pre-expansion cable manufacturing process, suitable for a variety of power cable diameters, and strong compatibility.
3. Excellent performance: The cold shrink terminations and cable joints are made of high-quality silicone rubber material. It not only has excellent hydrophobic performance but also does not form conductive water film and has self-healing properties.

STANDARD

IEC62076 / IEC60840 / IEC60859 / IEC60502 / IEC60055 / IEC61442

MORE TYPES OF CABLE COLD SHRINK TERMINATION

0.6/1KV
Single-core / Double core / Multi-core insulated cold shrink cable termination
8.7/15KV
Single-core / Three-core insulated cold shrink cable termination
26/35KV
Single-core / Three-core insulated cold shrink cable termination
15kv / 25kv Cold Shrink Cable Termination Joint

35kv Cold Shrink Cable Middle Joint—Through Joint / Insulated Joint

Our cable lugs work in conjunction with standard cable crimping tools and come with inspection holes to ensure the conductor has been fully inserted before crimping occurs. Lugs with a bell mouth ensure smooth transition from lug to cable, avoiding problems of chafing where the cable is subjected to vibration.

Our range of cable lugs covers cables with copper and aluminium conductors.

THE CABLE TERMINAL LUG IS A CRAFTED DESIGN AND JYTOP EXPERTS RECOMMEND CONSIDERING ITS USE IN THE FOLLOWING SITUATIONS.
1. The location of the wire due to commissioning, maintenance, and other factors, the need for frequent disassembly, and installation of the cable and wire. For example, if two wires, sometimes need to connect, and sometimes need to disconnect, then you can use the terminal lug to connect them, and it can be disconnected at any time. And do not have to solder them up or wind them together, very convenient and fast. The majority of the material of the terminal is copper and aluminum, according to the material of the inner core of the cable to choose the appropriate copper lugs connection, if the cable is a copper wire, the equipment contact surface is aluminum, then you need a copper and aluminum terminals to connect. JYTOP electrical product specifications are more comprehensive, the product is high purity purple copper, and the surface layer of thin, is beautiful and durable.

2. For an electrical box or circuit board, etc. As a whole, the need for electrical connection with other external circuits. PCB terminal blocks for use on the circuit board, in the event of a line failure, you can easily detect the wire. Avoid the time-consuming and laborious removal of the wires from the circuit board.

3. The number of wires to be connected at the same equipotential point is large. The terminal lug has holes at both ends to insert wires, and screws for fastening or loosening and is suitable for interconnecting a large number of wires. In the power industry, there are special terminal blocks, and terminal boxes, covered with terminal blocks, single-layer, double-layer, current, voltage, ordinary, breakable, etc.

4. Larger wire diameter, not convenient to connect with the screw terminal lug. Plug-in terminal block using crimp frame wiring, access to large wire diameter, and protect the wire is not easily damaged.

5. Larger current, need to increase the contact area of the electrical connection. TB series high current terminal blocks can meet the needs of a larger current connection.

6. multi-stranded wires need to be connected to the same terminal lug. Because the same terminal block has more than one jack, convenient wire access. Bolt-type splice tube connector can connect copper/aluminum / aluminum alloy cable. Mechanical splice, no crimping tools, and accompanying operator skills are required, only socket wrench or wrench. Tinned and oxidized surface.

The invention of the cable terminal lug has been nearly a century of time, from the earliest combination of terminal lugs to the current diverse plug-in type, direct welding type, fence type, spring type terminals, and even bare terminals. The cable connector field has formed a perfect electrical interface technology system. Its use scope also expanded to rail transportation, security lighting, elevator power control, medical equipment, and other fields, in a variety of situations. In view of the convenient installation and stable electrical performance of the terminal block, it is gradually getting more customers’ trust.

Thank you for your interest in our products. If you want to get further information: such as bimetallic cable lugs, copper and aluminum transition terminal plugging oil lugs price, copper and aluminum bimetal cable lugs, copper and aluminum transition terminal plugging oil lugs specifications, and other information. Welcome to contact us at any time, we sincerely invite you to provide you with the most satisfactory service.

1). 0.6/1kV, Single Core, Cu or Al/XLPE/PVC Power Cable;
0.6/1kV, Single Core, Cu or Al/XLPE/PVC/AWA/PVC Power Cable;

(2). 0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Two Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(3). 0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Three Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(4). 0.6/ 1kV ,3+1 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3 +1Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3+1 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(5). 0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Four Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(6). 0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,4+1 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(7). 0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,Five Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

(8). 0.6/ 1kV ,3+2 Cores, Cu or Al/XLPE/PVC Power Cable;
0.6/ 1kV ,3C+2 Cores, Cu or Al/XLPE/PVC/STA/PVC Power Cable;
0.6/ 1kV ,3C+2 Cores, Cu or Al/XLPE/PVC/SWA/PVC Power Cable;

Application:
Low Voltage XLPE Insulated power cable is used to transmit and distribute power in power transmission and distribution system of 1kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.

Property:
1.The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2.In short circuit (Max long term is no more than 5 seconds),the highest temperature for conductor is no more than 250 degrees.
3.The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
4.Excellent electrical performance, resistance to chemical corrosion.
5.They can stand advisable traction when laid.They can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable.

Application:
PVC Insulated and Sheathed Power Cable are suitable to be laid for distribution line with A.C.50HZ and rated voltage up to 1kV. With the characteristics of stable capability, advanced technology, broad material resources, low price, good flexible and easy to lay and maintain.

Property:
1.The long-term permissible operation temperature of the conductor shall not be higher than 70℃.
2. Conductor maximum short circuit((less than 5 second) temperature shall not be higher than 160℃.
3. The cable is not limited by drop in level when being laid, and the environment temperature shall not be lower than 0℃.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.

Construction:

0.6/1kV Single Core or Multi Cores, Circular Compacted Al or Cu/PVC/PVC armoured or Un-Armoured Power Cable.

It shows us the most common sizes of conductor, but other sizes to any recognized standards or customer specification can also be supplied as per customer's requirements.
